Part 1
Engine, Removing
• With lock carrier installed, engine is removed downward together with the transmission and the subframe.
• Collect escaping coolant in a clean container for disposal or reuse.
• During installation, cable ties must be installed at the same location.
Special tools, testers and auxiliary items required
• Pry Lever - Rmv Outside Mirror (80 - 200)
• Oil Collecting and Extracting Device (V.A.G 1782)
• Step Ladder (VAS 5085)
• Engine Bung Set (VAS 6122)
• Scissor-Type Assembly Platform (VAS 6131 A) with support set (VAS 6131/10) and Supplementary set, Audi Q7 (VAS 6131/13)
• Drip Tray for VAS 6100 (VAS 6208)
• Hose Clip Pliers (VAS 6362)
• Puller for Gear Shaft Linkage (T40160)
Procedure
Risk of vehicle tipping over with the engine removed.
• Secure vehicle. Luggage compartment must be empty for this.
There is a risk of injury because the fuel is under very high pressure.
• Reduce the fuel pressure down to residual pressure before opening high pressure area of the fuel injection system.
- Reduce fuel pressure in high pressure area.
- Position the front wheels so they are straight.
• Release the electro-mechanical parking brake before disconnecting the battery so the driveshaft can be rotated to remove it.
Risk of destroying electrical components.
• Observe measures for disconnecting battery.
- Turn off the ignition and remove the key.

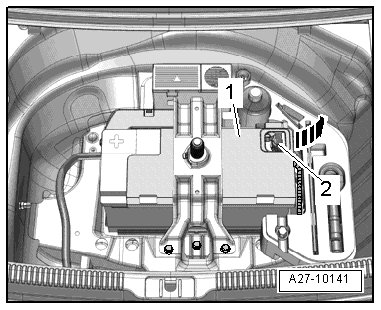

- Disconnect the Ground (GND) cable - 2 - from the battery post.
- Empty coolant circuit.
Vehicles with Hydraulic Power Steering

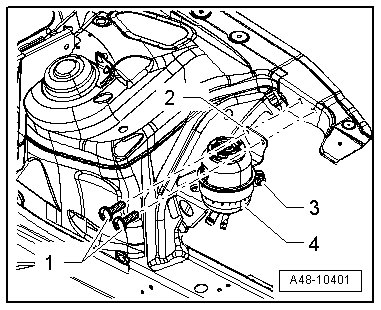

- Extract the power steering fluid from the power steering reservoir using the (V.A.G 1782) - 3 -.
• Ignore - 1, 2 and 4 -.
All Vehicles
- Remove the engine covers - 1 and 2 - upward.
Risk of scalding due to hot steam and hot coolant.
• The coolant system is under pressure when the engine is warm.
• Cover the coolant reservoir cap with a cloth and then open it slowly to release the pressure in the system.
- Open the coolant reservoir cap.
- Remove the left and right front wheels.
- Remove left and right front wheel housing liners.
- Remove the noise insulation - 1 and 2 -.
- Place (VAS 6208) under the engine.
- Remove the drain plug - 1 - and drain the coolant.
- Lift the clip - 2 - and disconnect the coolant hose from the radiator.
- Remove the coolant hose from the engine oil cooler by loosening the hose clamp - arrow - and letting the coolant drain out.
• The engine is not shown in the following illustrations.
Vehicles with Left Front Coolant Pipes, Version

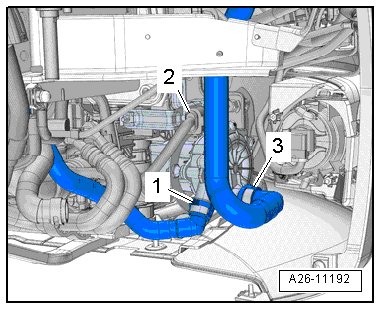

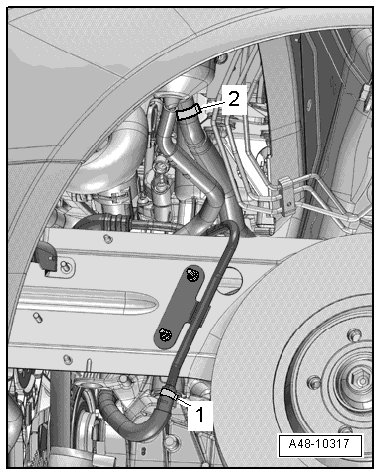

- Loosen the hose clamps - 1 and 3 -, remove the left front coolant hoses from the coolant pipes and drain any remaining coolant.
• Ignore - 2 -.
Vehicles with Left Front Coolant Pipes, Version 2

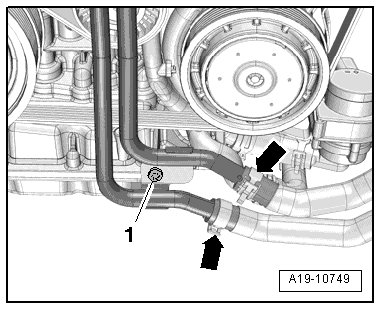

- Loosen the clamps - arrows -, drain any remaining coolant and then remove the coolant hoses from the left front coolant pipes.
• Ignore - 1 -.
All Vehicles

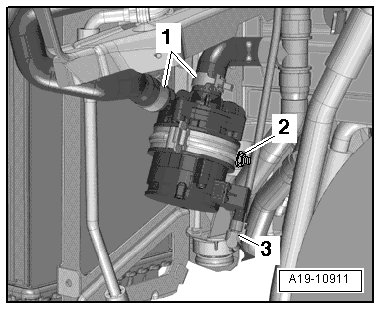

- Disconnect and free up the connector - 3 - on the charge air cooling pump (V188).
• Ignore - 1 and 2 -.
Vehicles with Hydraulic Power Steering
- Place the (V.A.G 1782) under the disconnection point.

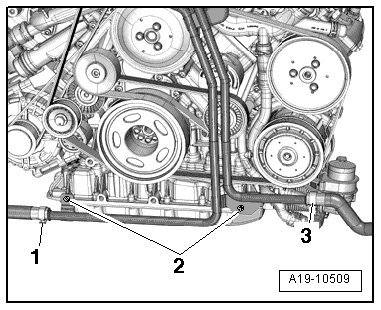

- Disconnect the power steering hydraulic oil supply line - 2 - and return line - 1 - in the left front wheel housing and free them up.
- Seal any open lines and connections with a clean plug from the (VAS 6122).
Vehicles with Coolant Recirculation Pump (V50) , Version 1

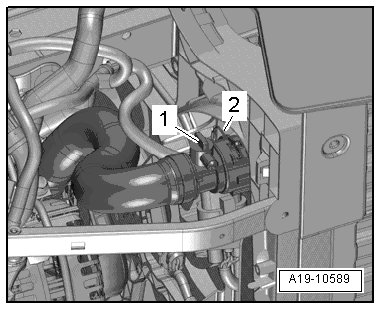

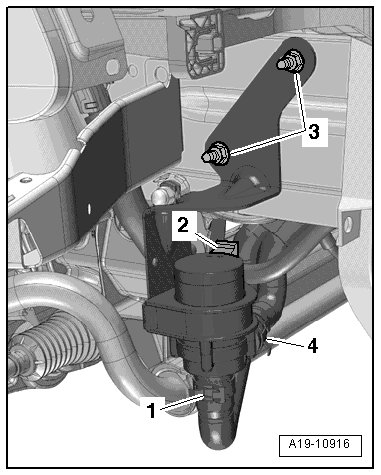

- Disconnect the connector - 2 -.
- Place (VAS 6208) under engine.
- Loosen the hose clamp - 1 - and remove the coolant hose from the coolant recirculation pump.
• Ignore - 3 and 4 -.
All Vehicles

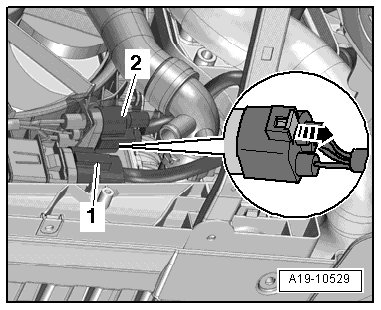

- Disconnect the radiator fan electrical connectors - 1 and 2 -, to do this, push the clamp to the rear - arrow - and push the release down.
- Free up the wiring harness.
Vehicles with Secondary Air Injection (AIR) Pump Motor (V101) , Version 1:
- Disconnect the connector - 3 - on the AIR pump motor.
- Press the release buttons and remove the secondary air hose - 1 -.
• Ignore - 2 -.
Vehicles with Secondary Air Injection (AIR) Pump Motor (V101) , Version 2:
- Disconnect the connector - 2 - on the AIR pump motor.
- Press the release buttons and remove the secondary air hose - 1 -.
• Ignore - 3 -.
All Vehicles
- Remove the left and right bolt - 1 - and nut - 3 - and the lock carrier brace - 2 -.
- Remove the nut - arrow - on the right longitudinal member and free up the ground wires.

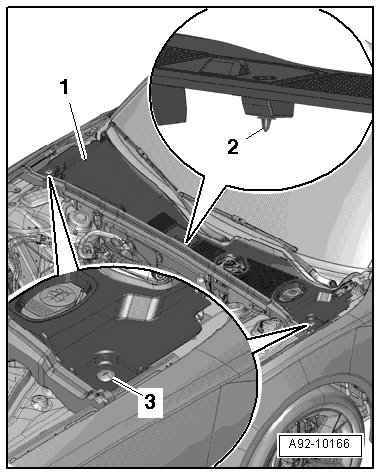

- Remove the seal from the plenum chamber bulkhead.
- Remove the plenum chamber cover.

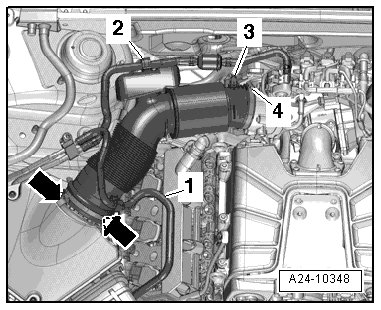

- Remove the air duct - arrows -.
- Free up the fuel hose - 1 - and the EVAP canister hose - 2 - on the air duct pipe.
- Remove the vacuum hose - 3 - from the air guide pipe connection.
- Remove the air guide pipe by loosening the hose clamp - 4 - and opening the clips - arrows -.

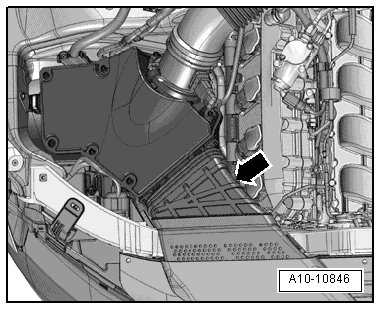

- Remove the air filter housing and, if applicable, disconnect the electrical connector - arrow - on the rear side at the intake air switch-over valve (N335).

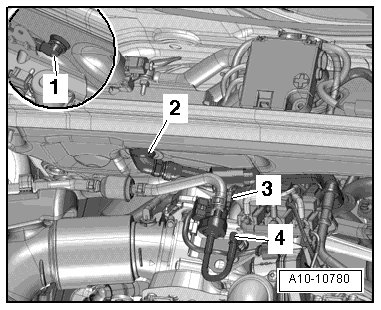

- Disconnect the vacuum connection - 2 - from the plenum chamber bulkhead. Remove the vacuum hose - 1 - on the back.
- Disconnect the connector - 3 - on the Evaporative Emission (EVAP) canister purge regulator valve 1 (N80) and disconnect the vacuum hose - 4 -.
- Disengage the EVAP canister purge regulator valve 1 from the bracket and lay it aside with the hoses connected.

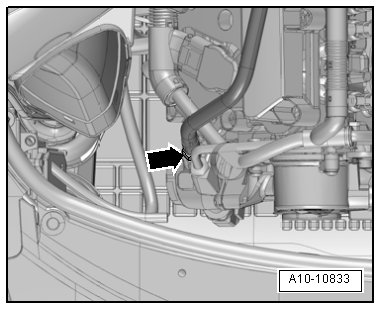

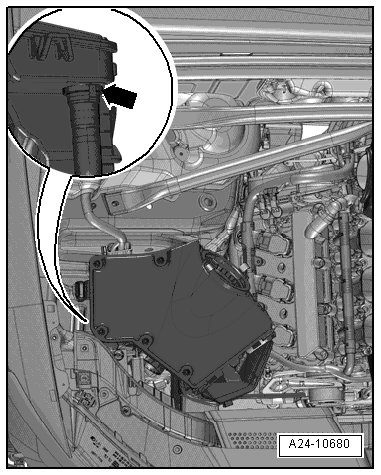

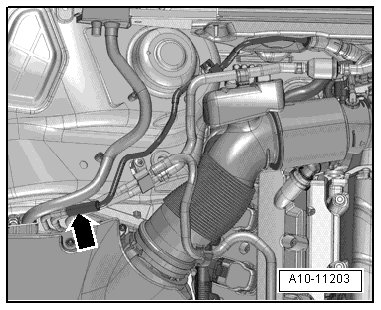

- Disconnect the vacuum hose leading to the leak detection pump (V144) - arrow -.
Vehicles with Version 1
Risk of injury from fuel.
• To reduce the fuel pressure, lay cloths around the connecting point before opening fuel system and carefully loosen.
There is a risk of contamination.
• Follow the guidelines for cleanliness when working on the fuel supply system. Refer to => [ Clean Working Conditions ] Clean Working Conditions.
