Oil Pressure Switch (F22)

Oil Pressure Switch (F22)

Removing






- Remove the rear engine cover - 2 - upward.

- Move the left electric wires on the plenum chamber bulkhead to the side.

Vehicles with Coolant Recirculation Pump (V50) , Version 2

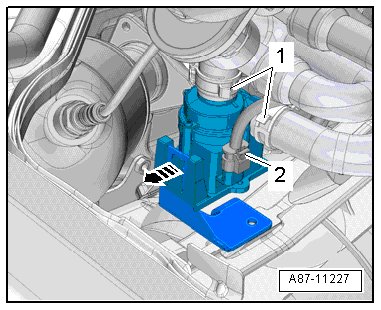

- Unlock the tab - arrow -, remove the coolant recirculation pump and move it to the side.

• Ignore - 1 and 2 -.

All Vehicles






• To collect escaping engine oil, place a clean cloth under oil filter housing.

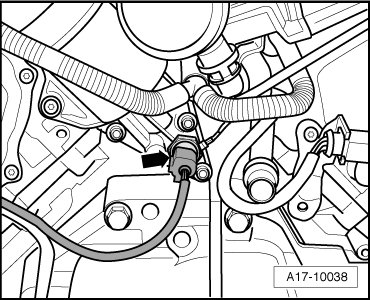

- Slide the retainer back, press the release down and disconnect the connector - arrow -.

- Remove the oil pressure switch.

Installing

Install in reverse order of removal. Note the following:

• Tightening specification, refer to => [ Oil Filter Housing and Oil Pressure Switch Overview ] Oil Filter Housing and Oil Pressure Switch Overview.

• Replace the seal.

• To prevent oil loss, insert the new oil pressure switch in the connecting pieces immediately.

- Check the oil level.
