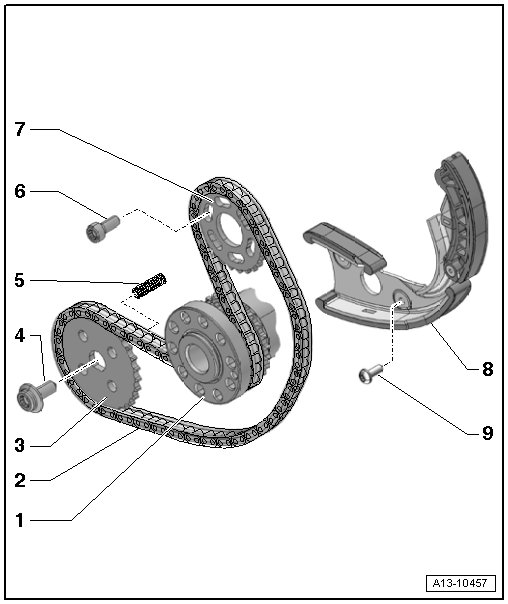

Power Take-Off Drive Chain Overview

Power Take-Off Drive Chain Overview






1 Crankshaft

2 Power Take-Off Drive Chain

• Mark the running direction with paint for reinstallation

• Removing and installing, refer to => [ Power Take-Off Drive Chain ] Power Take-Off Drive Chain

3 Drive Sprocket for Oil Pump

• Installed position: The labeled side faces the engine

4 Bolt

• 30 Nm plus an additional 90° turn

• Replace

5 Pressure Spring

6 Bolt

• 15 Nm plus an additional 90° turn

• Replace

7 Balance Shaft Chain Sprocket

• Installed position: The labeled side faces the transmission

8 Chain Tensioner

• With glide track

9 Bolt

• 10 Nm plus an additional 45° turn

• Replace
