Diagram 15/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

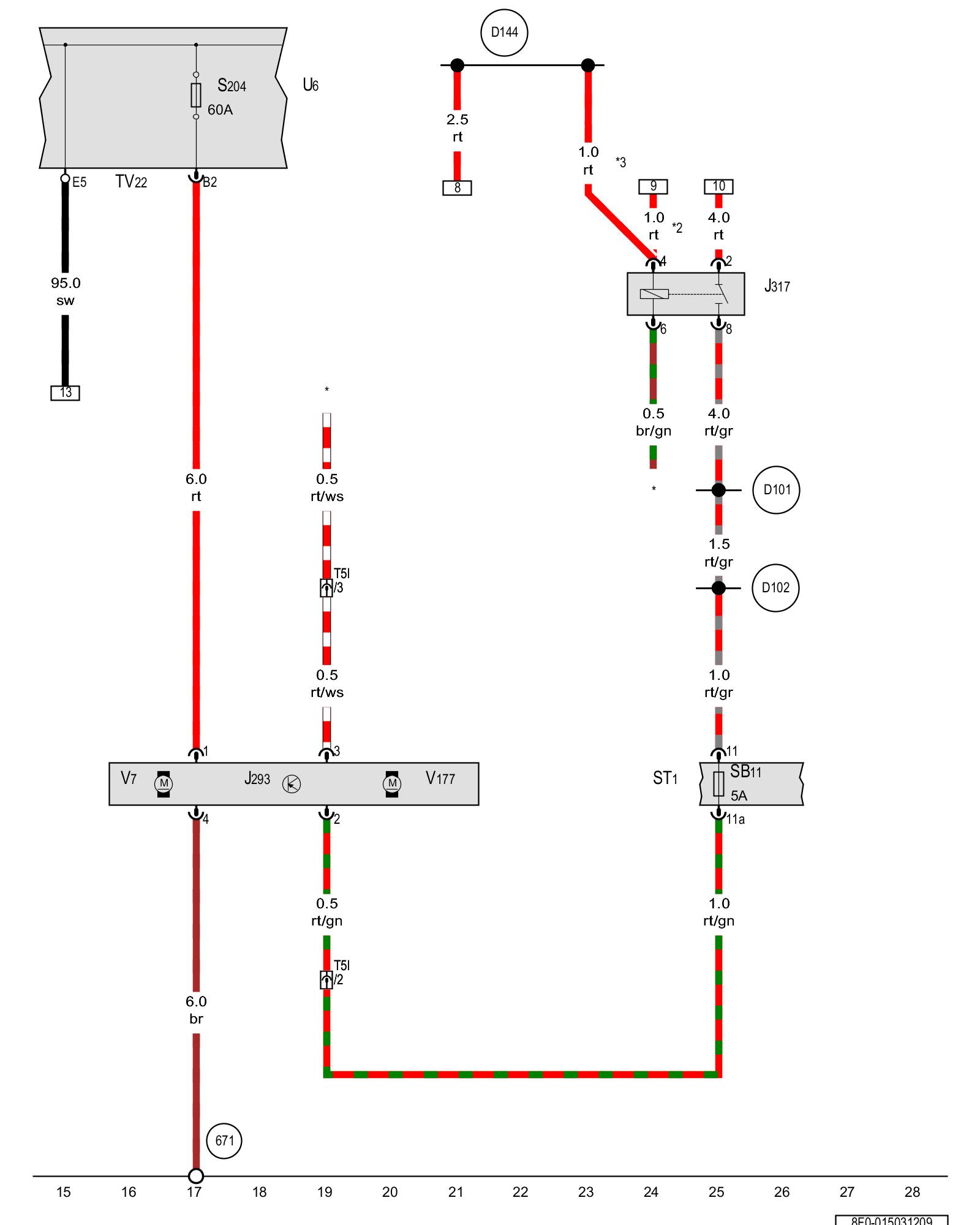

Coolant fan control module, Terminal 30 power supply relay, Fuse 11 (on fuse panel B), Fuse 1 (terminal 30), Coolant fan





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J293 - Coolant fan control module Control Modules in Front Part Of Vehicle

J317 - Terminal 30 power supply relay Overview Of Relay

ST1 - Fuse panel 1

SB11 - Fuse 11 (on fuse panel B) Overview Of Fuses

S204 - Fuse 1 (terminal 30) Overview Of Fuses

T5l - 5-pin connector, in the engine compartment

TV22 - Terminal 30 wire junction 2

U6 - Battery jump start terminal

V7 - Coolant fan Locations

V177 - Coolant fan 2 Locations

(671) - Ground connection 1 on left front longitudinal member Locations

(D101) - Connection (1) (in engine compartment wiring harness)

(D102) - Connection (2) (in engine compartment wiring harness)

(D144) - Positive connection 5 (30) (in engine compartment wiring harness)

* - Refer to applicable engine wiring diagram

*2 - Only in vehicles with 6-cylinder engine

*3 - Diameter depends on equipment

Previous Diagram 15/2 (Tracks 1-14)
