Diagram 113/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

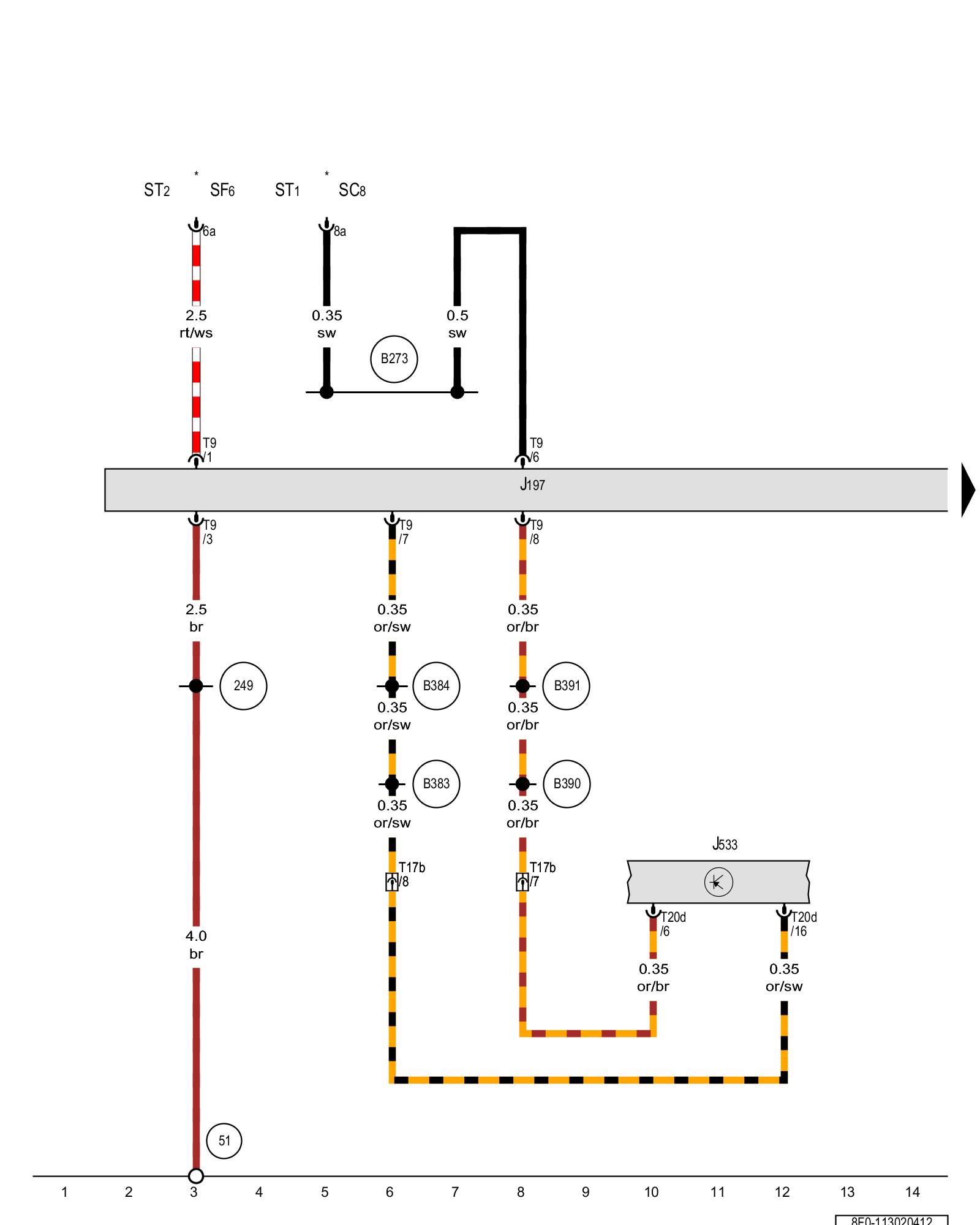

Level control system control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J197 - Level control system control module

J533 - Data bus on board diagnostic interface Overview of Control Modules in interior of vehicle

ST1 - Fuse panel 1

ST2 - Fuse panel 2

SF6 - Fuse 6 (on fuse panel F) Overview Of Fuses

SC8 - Fuse 8 (on fuse panel C) Overview Of Fuses

T9 - 9-pin connector

T17b - 17-pin connector, blue Overview Of Connector Stations

T20d - 20-pin connector Locations

(51) - Ground connection in luggage compartment, right Locations

(249) - Ground connection 2 (in interior wiring harness)

(B273) - Positive connection (15) (in main wiring harness)

(B383) - Powertrain CAN bus high connection 1 (in main wiring harness)

(B384) - Powertrain CAN bus high connection 2 (in main wiring harness)

(B390) - Powertrain CAN bus low connection 1 (in main wiring harness)

(B391) - Powertrain CAN bus low connection 2 (in main wiring harness)

* - Refer to applicable wiring diagram for fuse positions

Next Diagram 113/3 (Tracks 15-28)
