Diagram 84/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

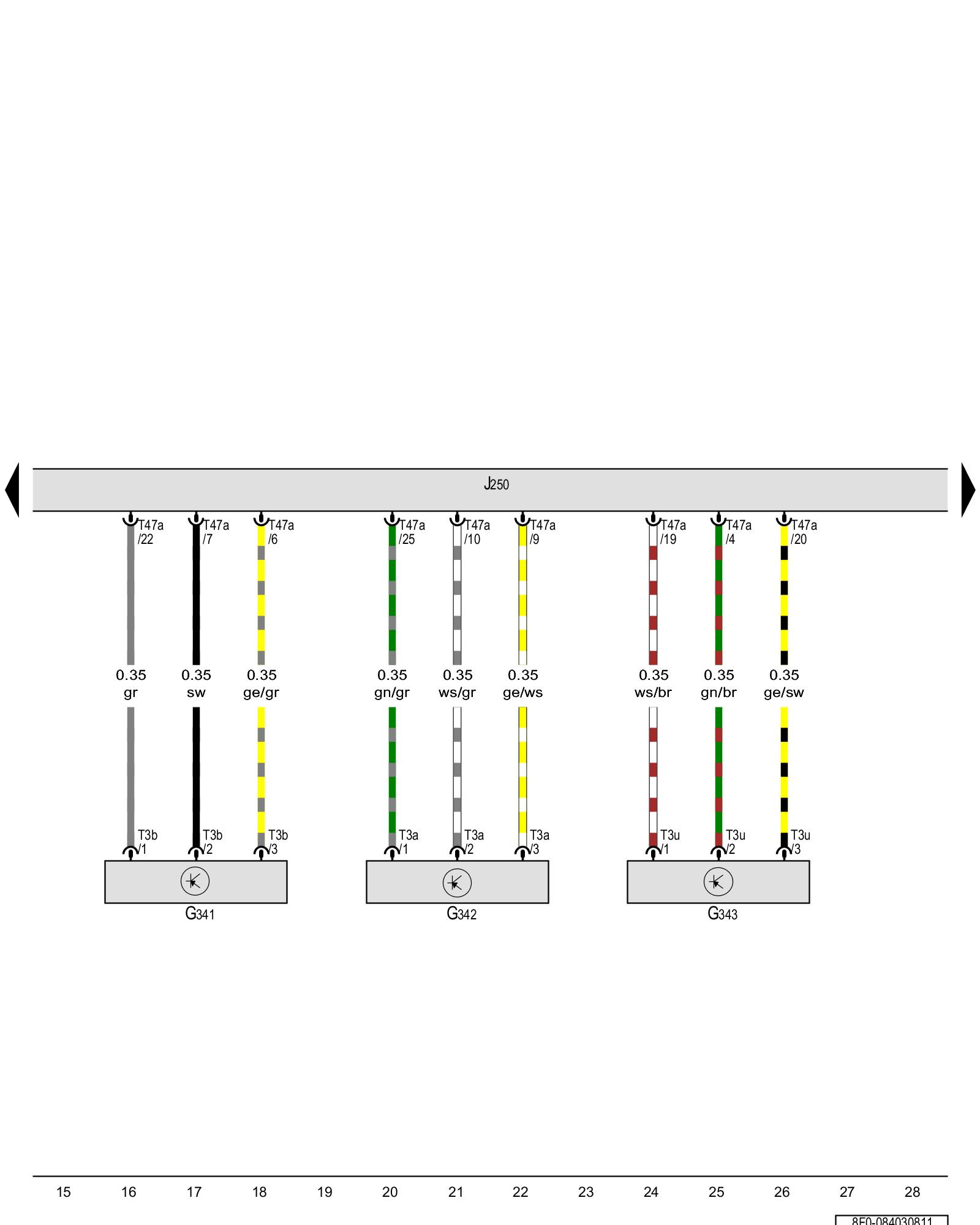

Left front body acceleration sensor, Right front body acceleration sensor, Rear body acceleration sensor, Electronic damping control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G341 - Left front body acceleration sensor Electronically Controlled Damping Assembly Overview

G342 - Right front body acceleration sensor Electronically Controlled Damping Assembly Overview

G343 - Rear body acceleration sensor Electronically Controlled Damping Assembly Overview

J250 - Electronic damping control module Control Modules in rear part of vehicle, overview

T3a - 3-pin connector

T3b - 3-pin connector

T3u - 3-pin connector

T47a - 47-pin connector Connector Locations

Previous Diagram 84/2 (Tracks 1-14)

Next Diagram 84/4 (Tracks 29-42)
