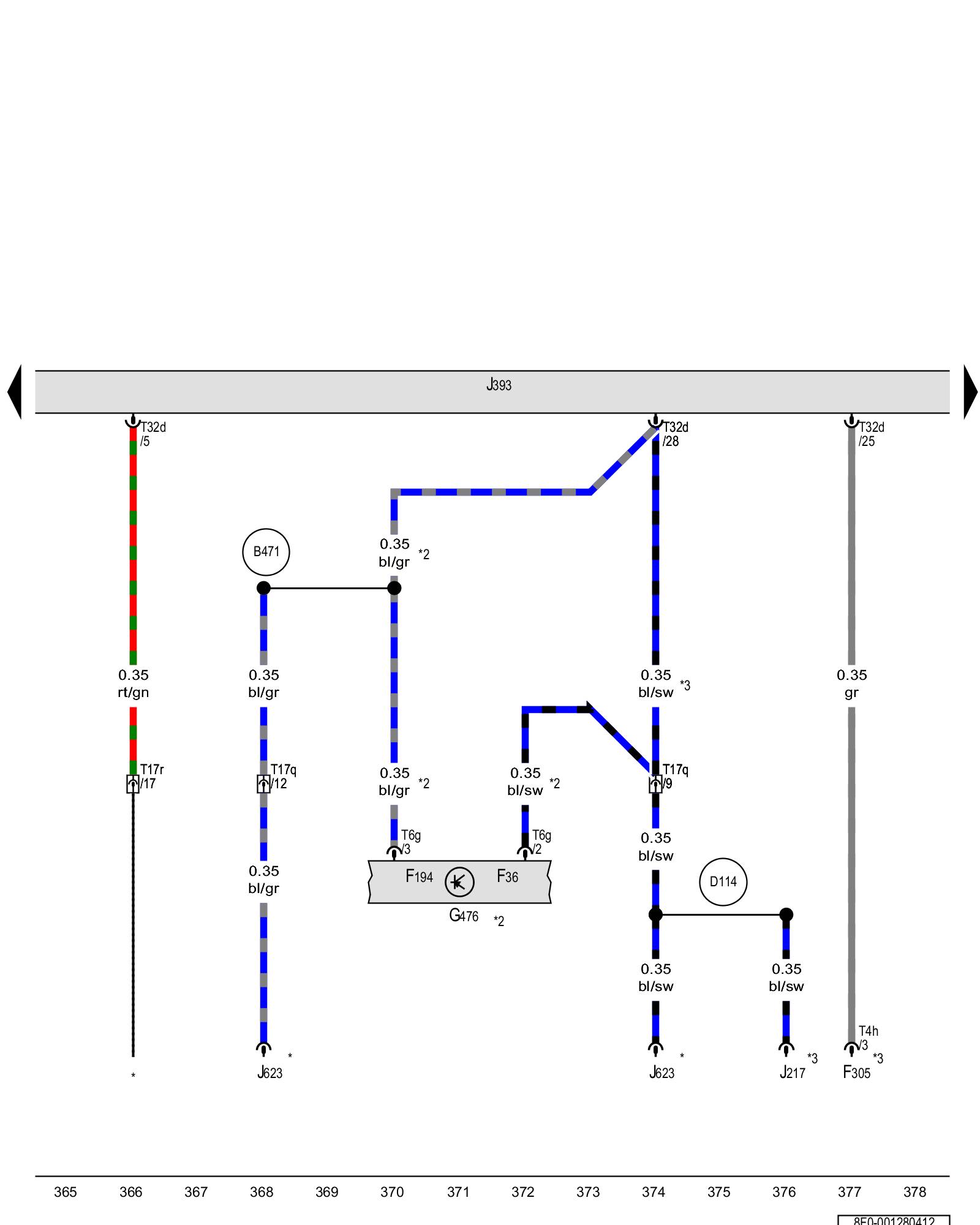

Diagram 1/28 (Tracks 365-378)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Clutch pedal switch, Comfort system central control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

F36 - Clutch pedal switch

F194 - Clutch pedal starter interlock switch

F305 - Transmission park selector switch Locations

G476 - Clutch position sensor

J217 - Transmission control module Control Modules in Front Part Of Vehicle

J393 - Comfort system central control module Control Modules in rear part of vehicle, overview

J623 - Engine control module Control Modules in Front Part Of Vehicle

T4h - 4-pin connector

T6g - 6-pin connector

T17q - 17-pin connector, in the E-box Overview Of Connector Stations

T17r - 17-pin connector, in the E-box Overview Of Connector Stations

T32d - 32-pin connector Locations

(B471) - Connection 7 (in main wiring harness)

(D114) - Connection (12) (in engine compartment wiring harness)

* - Refer to applicable engine wiring diagram

*2 - Only for vehicles with a manual transmission

*3 - Refer to applicable wiring diagram for automatic transmission

Previous Diagram 1/27 (Tracks 351-364)

Next Diagram 1/29 (Tracks 379-392)
