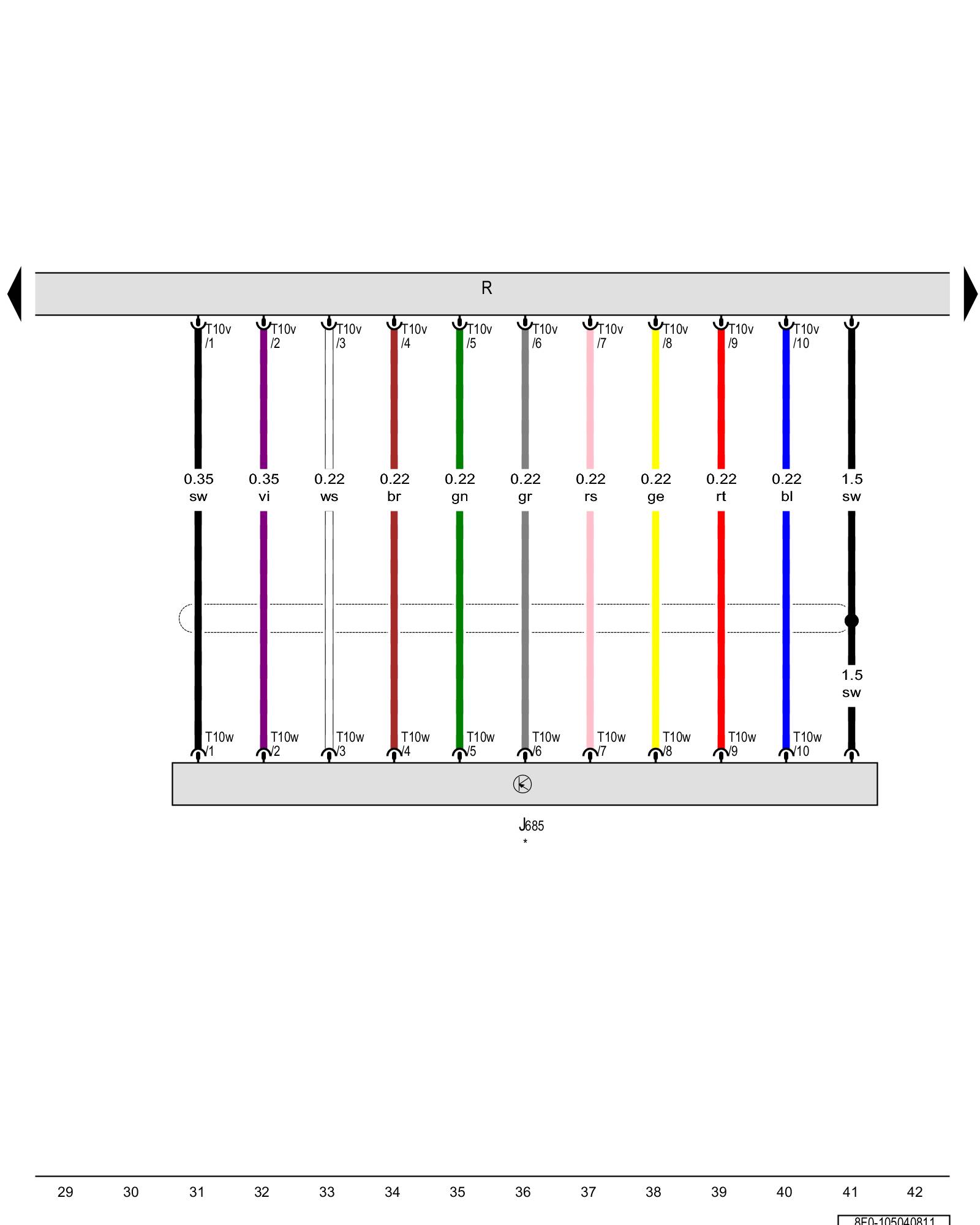

Diagram 105/4 (Tracks 29-42)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Radio





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J685 - Front information display control head Overview of Control Modules in interior of vehicle

R - Radio Overview of Control Modules in interior of vehicle

T10v - 10-pin connector Radio -R- (with integrated CD Changer -R41- /DVD Changer -R161- )

T10w - 10-pin connector Locations

* - Depending on equipment
