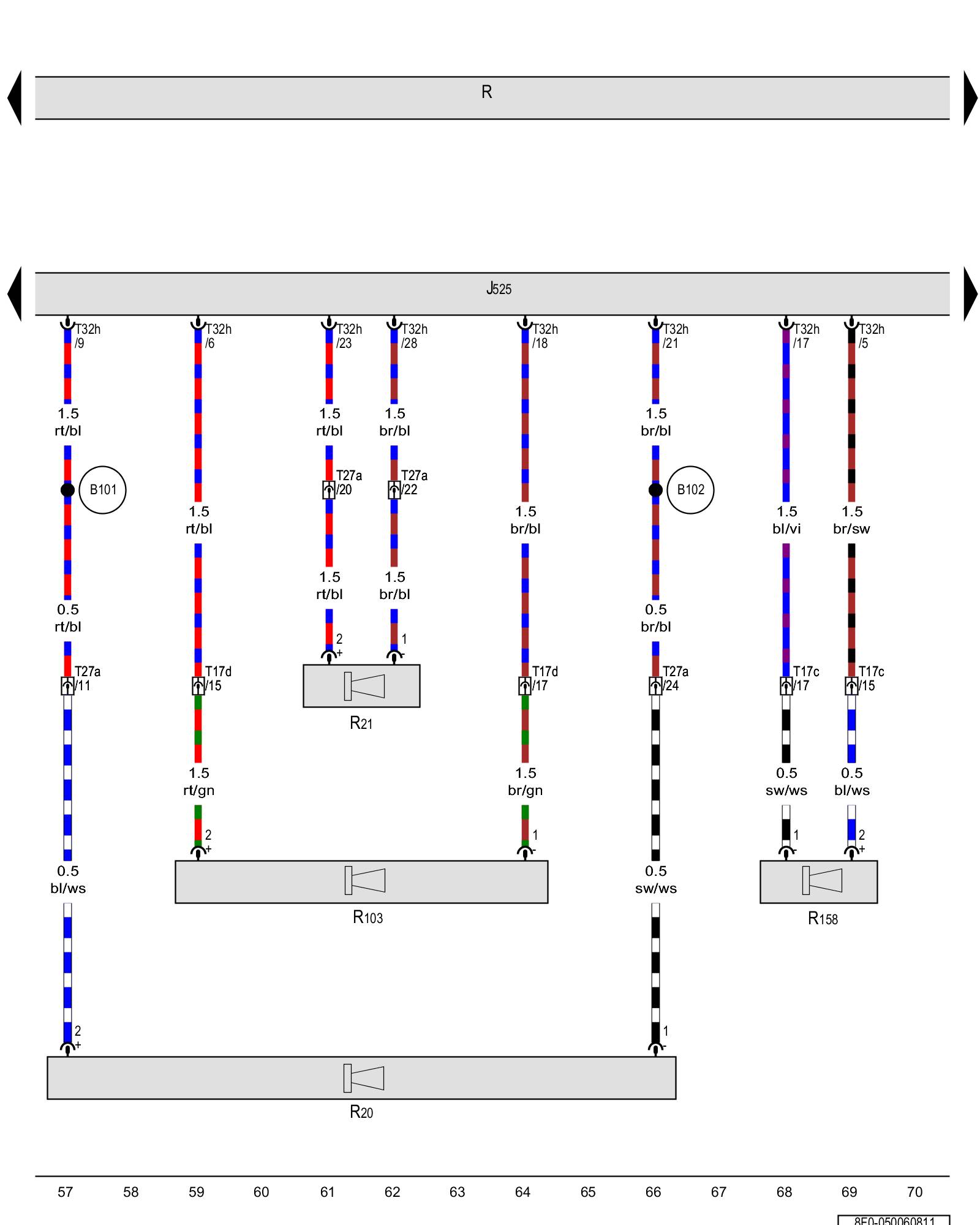

Diagram 50/6 (Tracks 57-70)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Digital sound system control module, Radio, Left front treble speaker, Left front bass speaker, Left front midrange speaker, Center mid-treble speaker





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J525 - Digital sound system control module Control Modules in rear part of vehicle, overview

R - Radio Overview of Control Modules in interior of vehicle

R20 - Left front treble speaker Radio / Sound System Component Locations

R21 - Left front bass speaker Radio / Sound System Component Locations

R103 - Left front midrange speaker Radio / Sound System Component Locations

R158 - Center mid-treble speaker Radio / Sound System Component Locations

T17c - 17-pin connector Overview Of Connector Stations

T17d - 17-pin connector Overview Of Connector Stations

T27a - 27-pin connector

T32h - 32-pin connector

(B101) - Left front speaker positive connection (in main wiring harness)

(B102) - Left front speaker negative connection (in main wiring harness)
