Diagram 50/12 (Tracks 141-154)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

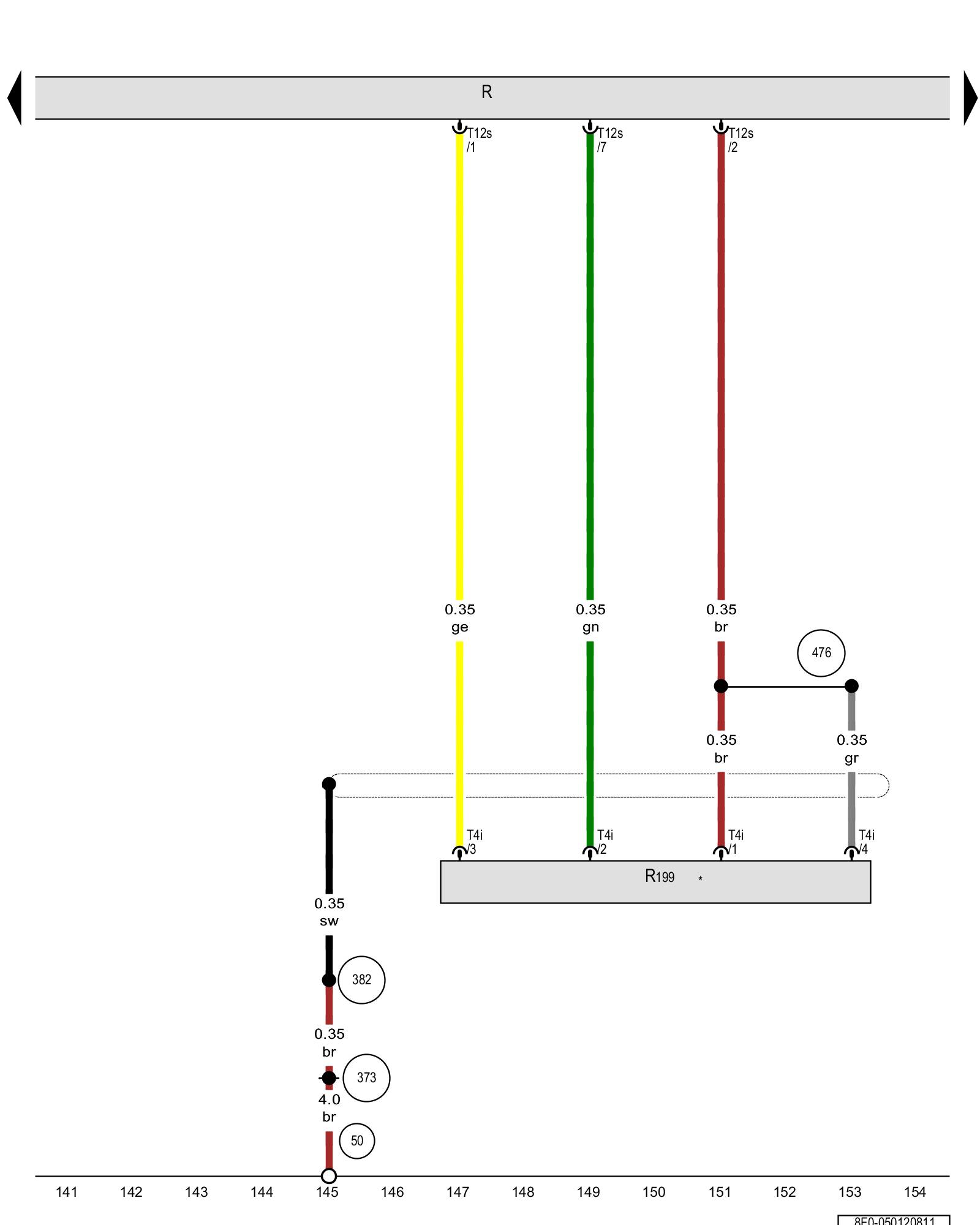

Radio, External audio source connection





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

R - Radio Overview of Control Modules in interior of vehicle

R199 - External audio source connection Overview Of Connector Stations Radio / Sound System Component Locations

T4i - 4-pin connector

T12s - 12-pin connector Radio -R- (with integrated CD Changer -R41- /DVD Changer -R161- )

(50) - Ground connection in luggage compartment, left

(373) - Ground connection 8 (in main wiring harness)

(382) - Ground connection 17 (in main wiring harness)

(476) - Ground connection (in audio wiring harness)

* - Only for vehicles with external audio source connection - AUX-In connection
