Diagram 8/9 (Tracks 99-112)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

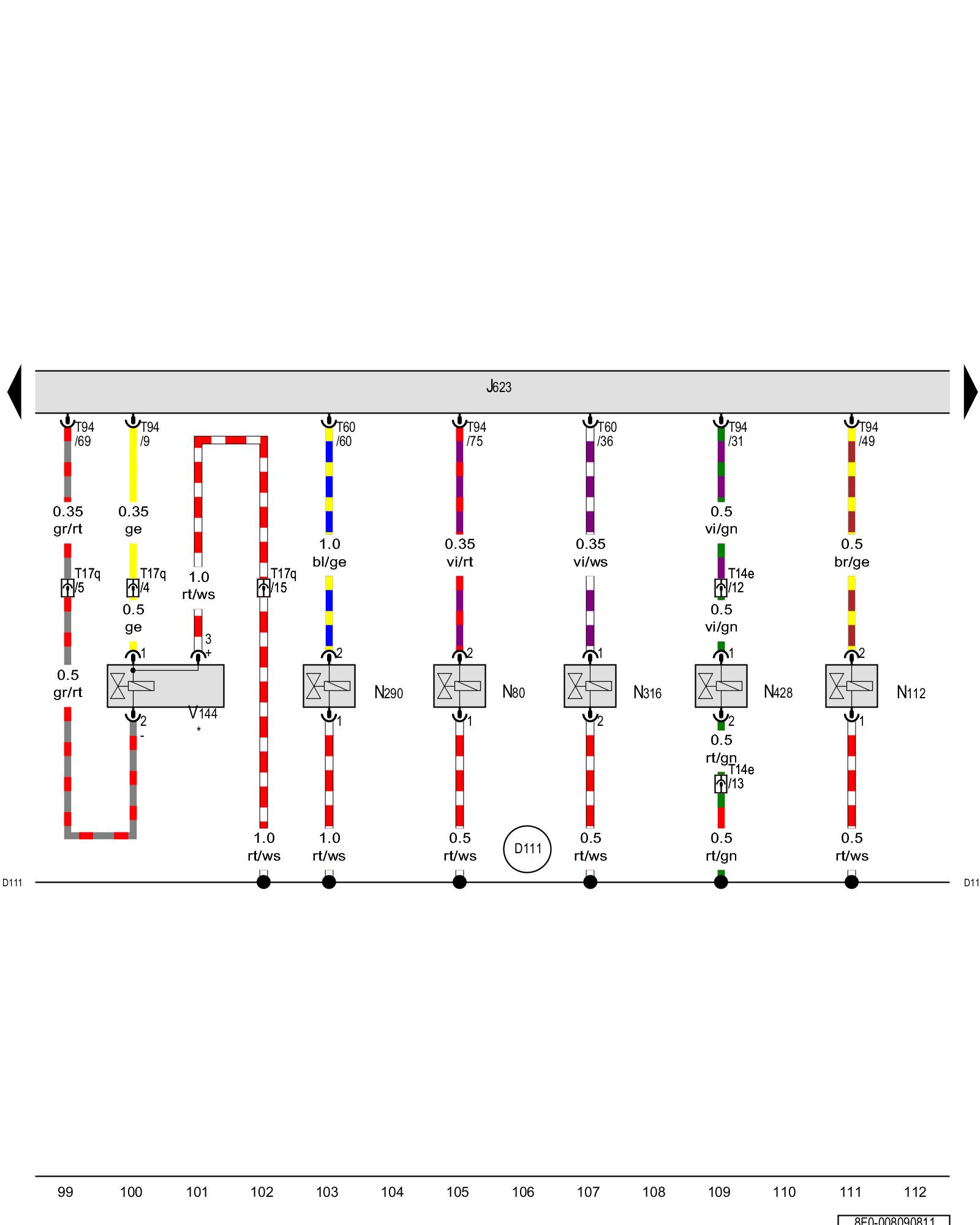

EVAP canister purge regulator valve 1, Secondary air injection solenoid valve, Oil pressure regulation valve





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J623 - Engine control module Control Modules in Front Part Of Vehicle

N80 - EVAP canister purge regulator valve 1 Locations

N112 - Secondary air injection solenoid valve Engine Management Systems Locations

N290 - Fuel metering valve Engine Management Systems Locations

N316 - Intake manifold runner control valve Engine Management Systems Locations

N428 - Oil pressure regulation valve Engine Management Systems Locations

T14e - 14-pin connector

T17q - 17-pin connector Overview Of Connector Stations

T60 - 60-pin connector Locations

T94 - 94-pin connector Locations

V144 - Leak detection pump Locations

(D111) - Connection (9) (in engine compartment wiring harness)

* - Only for vehicles with a fuel system diagnostic pump

Previous Diagram 8/8 (Tracks 85-98)

Next Diagram 8/10 (Tracks 113-126)
