Diagram 110/7 (Tracks 71-84)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

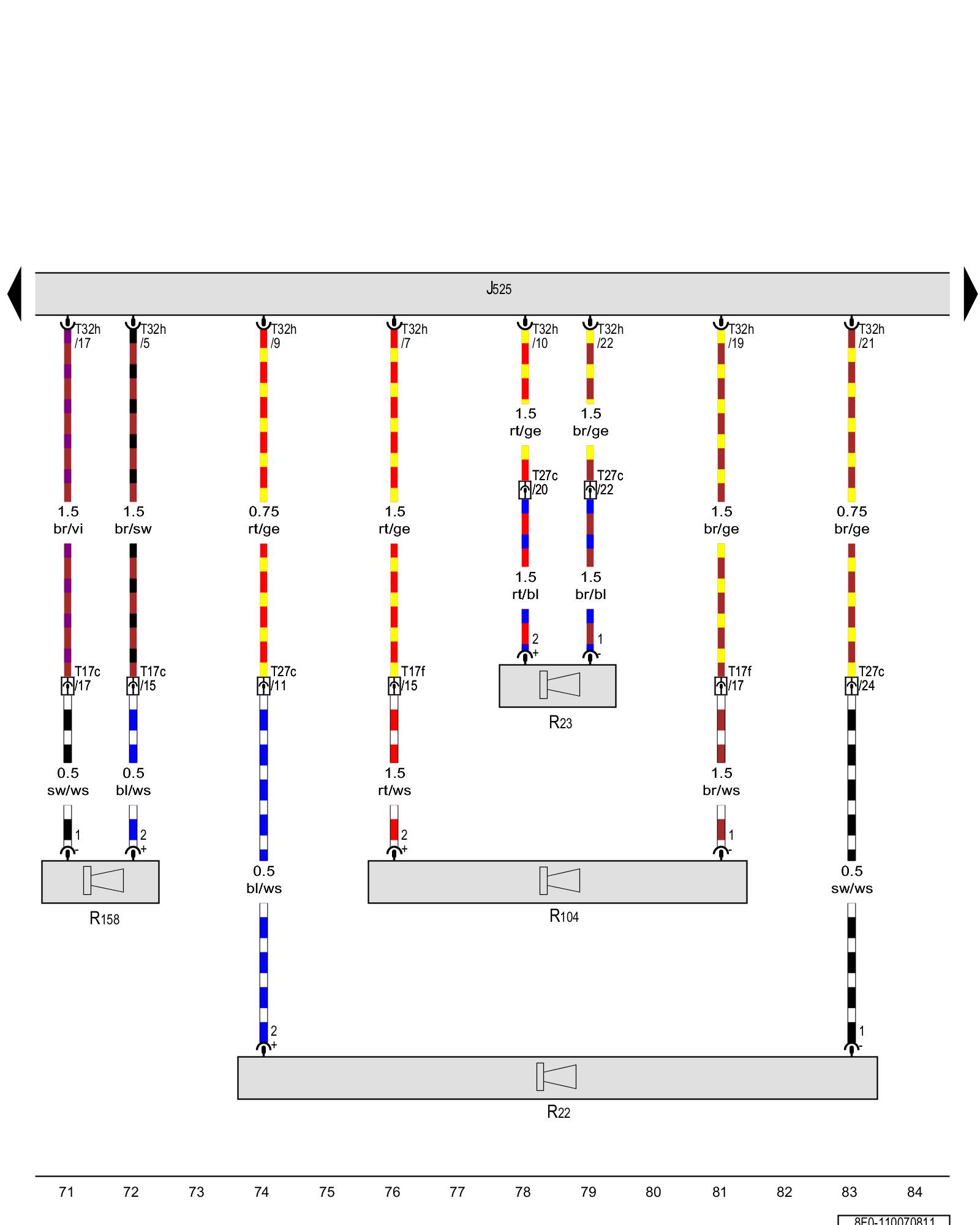

Digital sound system control module, Right front treble speaker, Right front bass speaker, Right front midrange speaker, Center mid-treble speaker





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J525 - Digital sound system control module Control Modules in rear part of vehicle, overview

R22 - Right front treble speaker Radio / Sound System Component Locations

R23 - Right front bass speaker Radio / Sound System Component Locations

R104 - Right front midrange speaker Radio / Sound System Component Locations

R158 - Center mid-treble speaker Radio / Sound System Component Locations

T17c - 17-pin connector Overview Of Connector Stations

T17f - 17-pin connector Overview Of Connector Stations

T27c - 27-pin connector

T32h - 32-pin connector
