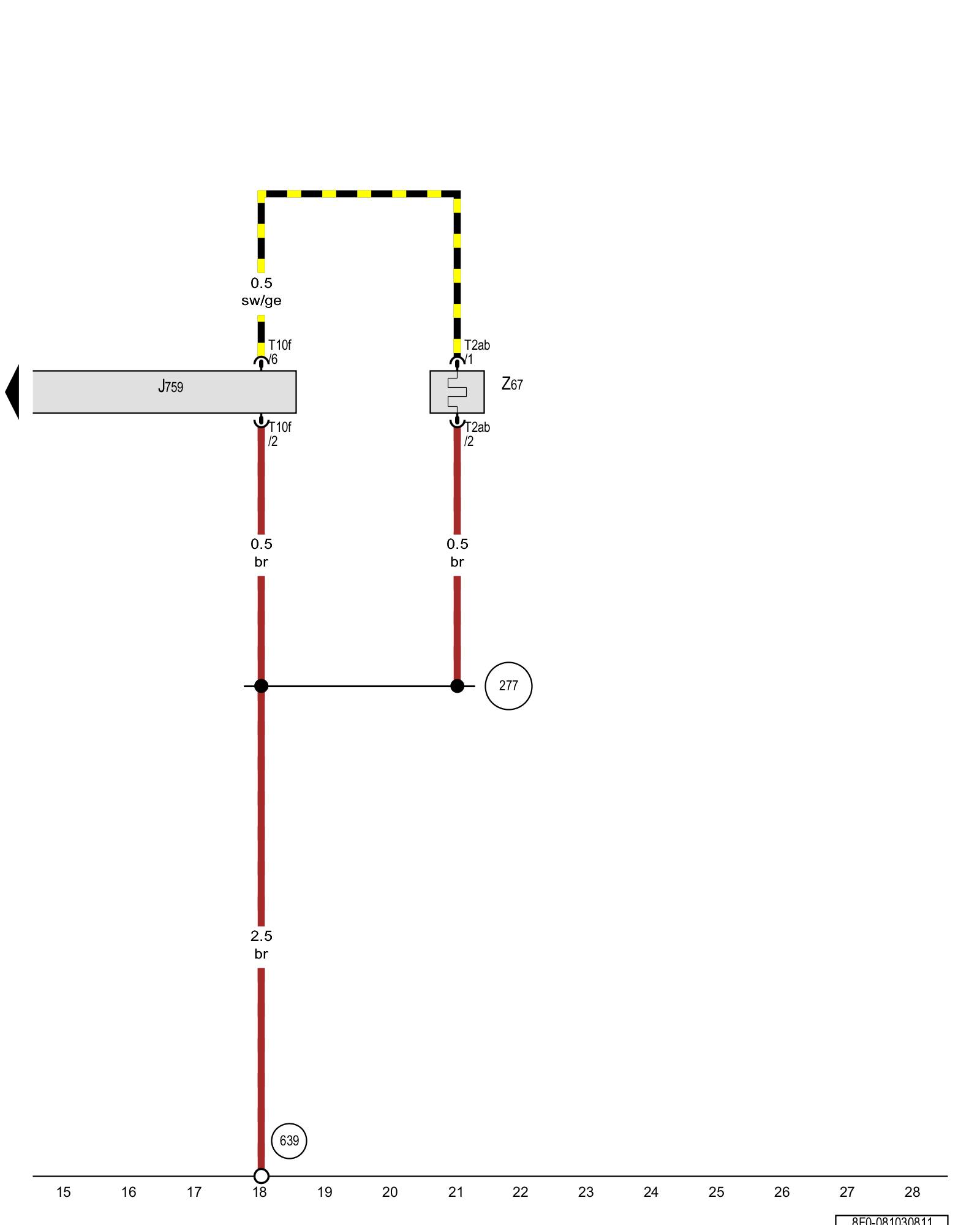

Diagram 81/3 (Tracks 15-28)






IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Directional stabilization assistance control module, Directional stabilization assistance windshield defogger





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J759 - Directional stabilization assistance control module Locations Headlight Assistant and Humidity Sensor Overview

T2ab - Double connector

T10f - 10-pin connector

Z67 - Directional stabilization assistance windshield defogger

(277) - Ground connection 3 (in interior wiring harness)

(639) - Ground connection on left A-pillar Locations
