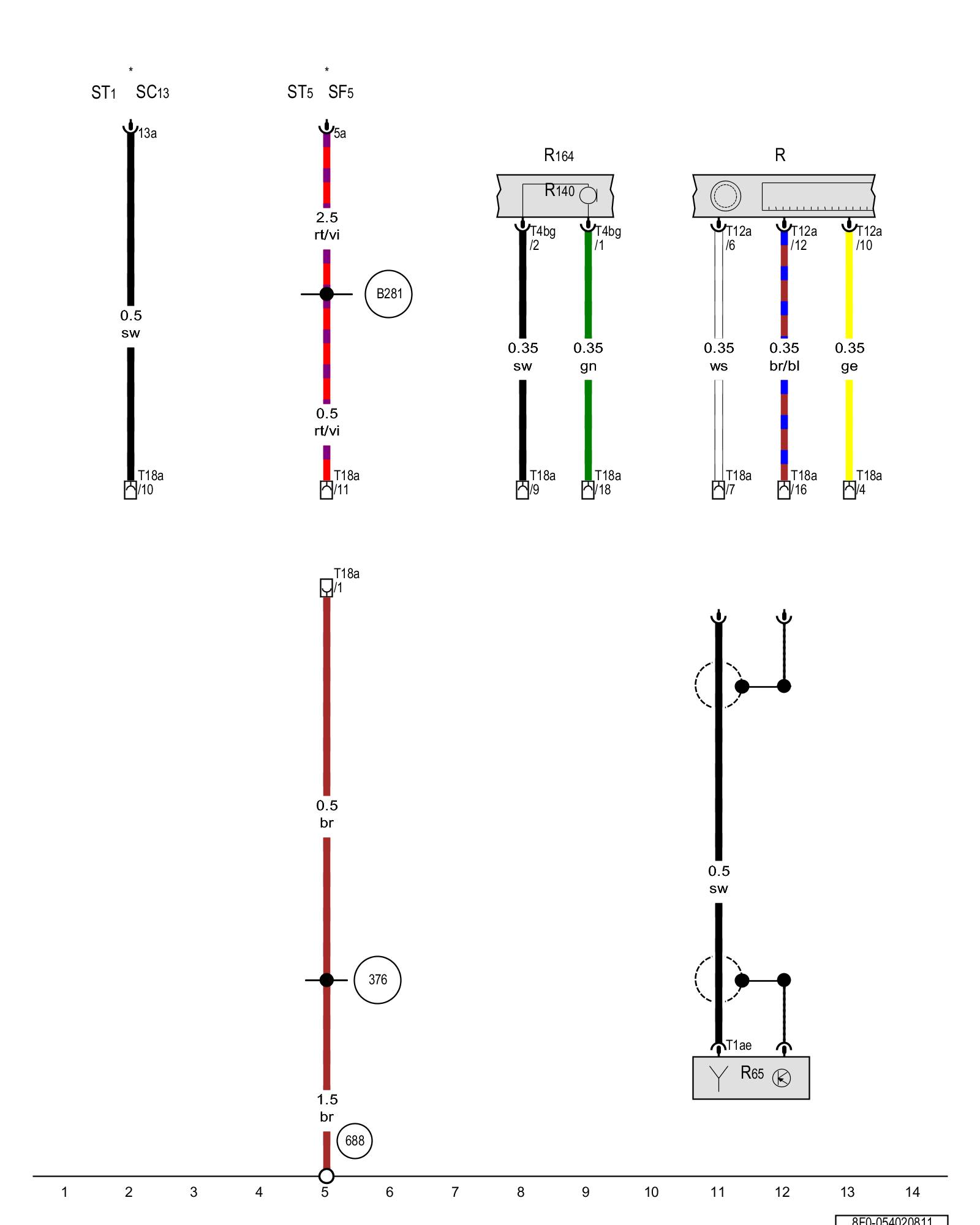

Diagram 54/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Radio, Telephone antenna, Microphone unit in front roof module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

R - Radio Overview of Control Modules in interior of vehicle

R65 - Telephone antenna Overview of Antenna Amplifier

R140 - Left front microphone

R164 - Microphone unit in front roof module Radio / Sound System Component Locations

ST1 - Fuse panel 1

ST5 - Fuse panel 5

SF5 - Fuse 5 (on fuse panel F) Overview Of Fuses

SC13 - Fuse 13 (on fuse panel C) Overview Of Fuses

T1ae - Single connector

T4bg - 4-pin connector

T12a - 12-pin connector Radio -R- (with integrated CD Changer -R41- /DVD Changer -R161- )

T18a - 18-pin connector, under the center console

(376) - Ground connection 11 (in main wiring harness)

(688) - Ground connection 2 on center tunnel Locations

(B281) - Positive connection 5 (15a) (in main wiring harness)

* - Refer to applicable wiring diagram for fuse positions
