Diagram 104/6 (Tracks 57-70)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

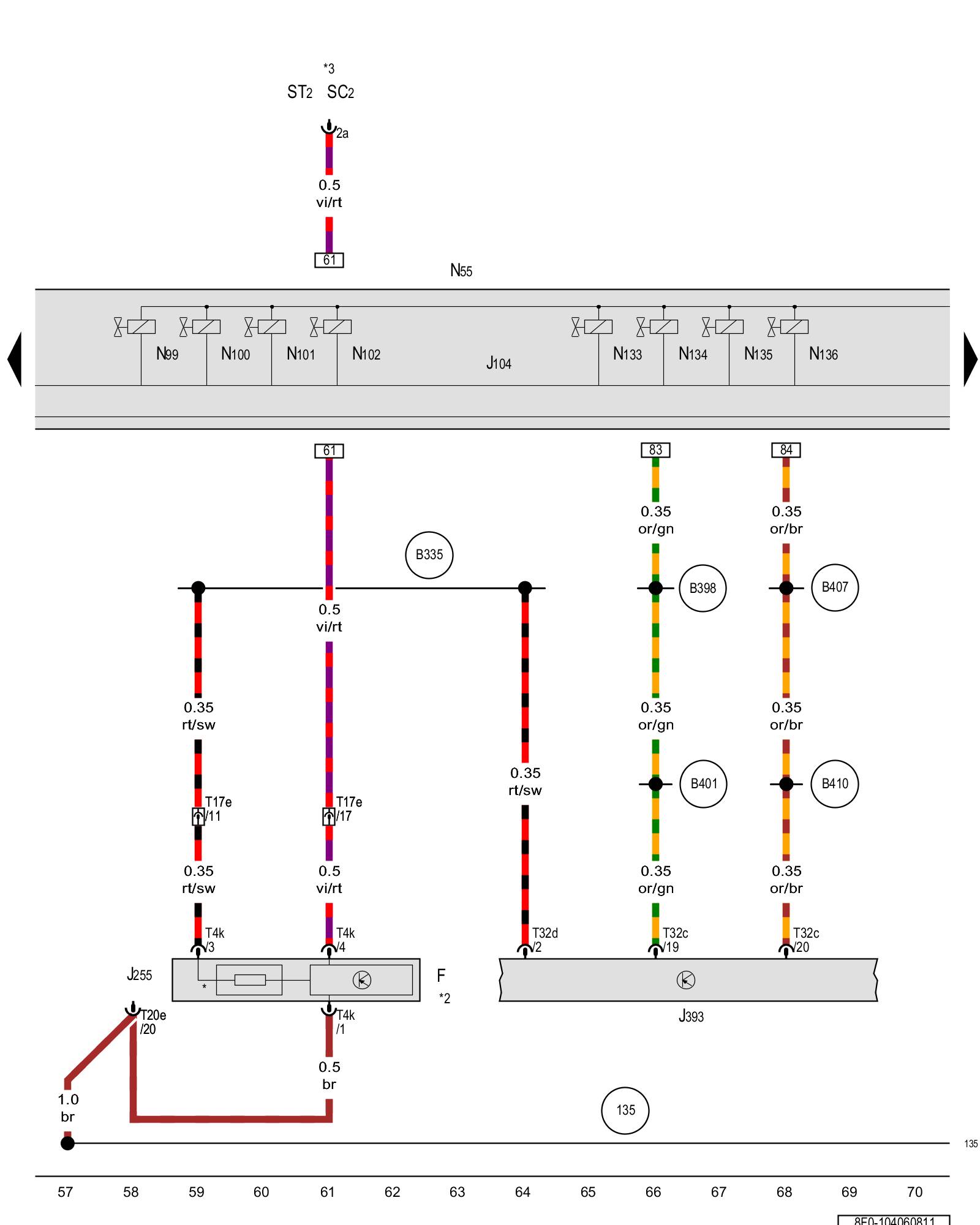

Brake lamp switch, ABS control module, Comfort system central control module, ABS hydraulic unit, Right front ABS inlet valve, Right front ABS outlet valve, Left front ABS inlet valve, Left front ABS outlet valve, Right rear ABS inlet valve, Left rear ABS inlet valve, Right rear ABS outlet valve, Left rear ABS outlet valve





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

F - Brake lamp switch Locations

J104 - ABS control module Control Modules in Front Part Of Vehicle

J255 - Climatronic control module Overview of Control Modules in interior of vehicle

J393 - Comfort system central control module Control Modules in rear part of vehicle, overview

N55 - ABS hydraulic unit Locations

N99 - Right front ABS inlet valve

N100 - Right front ABS outlet valve

N101 - Left front ABS inlet valve

N102 - Left front ABS outlet valve

N133 - Right rear ABS inlet valve

N134 - Left rear ABS inlet valve

N135 - Right rear ABS outlet valve

N136 - Left rear ABS outlet valve

ST2 - Fuse panel 2

SC2 - Fuse 2 (on fuse panel C) Overview Of Fuses

T4k - 4-pin connector

T17e - 17-pin connector, red Overview Of Connector Stations

T20e - 20-pin connector Climatronic Control Module -J255-

T32c - 32-pin connector Locations

T32d - 32-pin connector Locations

(135) - Ground connection 2 (in instrument panel wiring harness)

(B335) - Connection 1 (54) (in main wiring harness)

(B398) - Comfort system CAN bus high connection 2 (in main wiring harness)

(B401) - Comfort system CAN bus high connection 5 (in main wiring harness)

(B407) - Comfort system CAN bus low connection 2 (in main wiring harness)

(B410) - Comfort system CAN bus low connection 5 (in main wiring harness)

* - Brake lamp sensor system coil

*2 - Refer to applicable engine wiring diagram

*3 - Refer to applicable wiring diagram for fuse positions

Previous Diagram 104/5 (Tracks 43-56)

Next Diagram 104/7 (Tracks 71-84)
