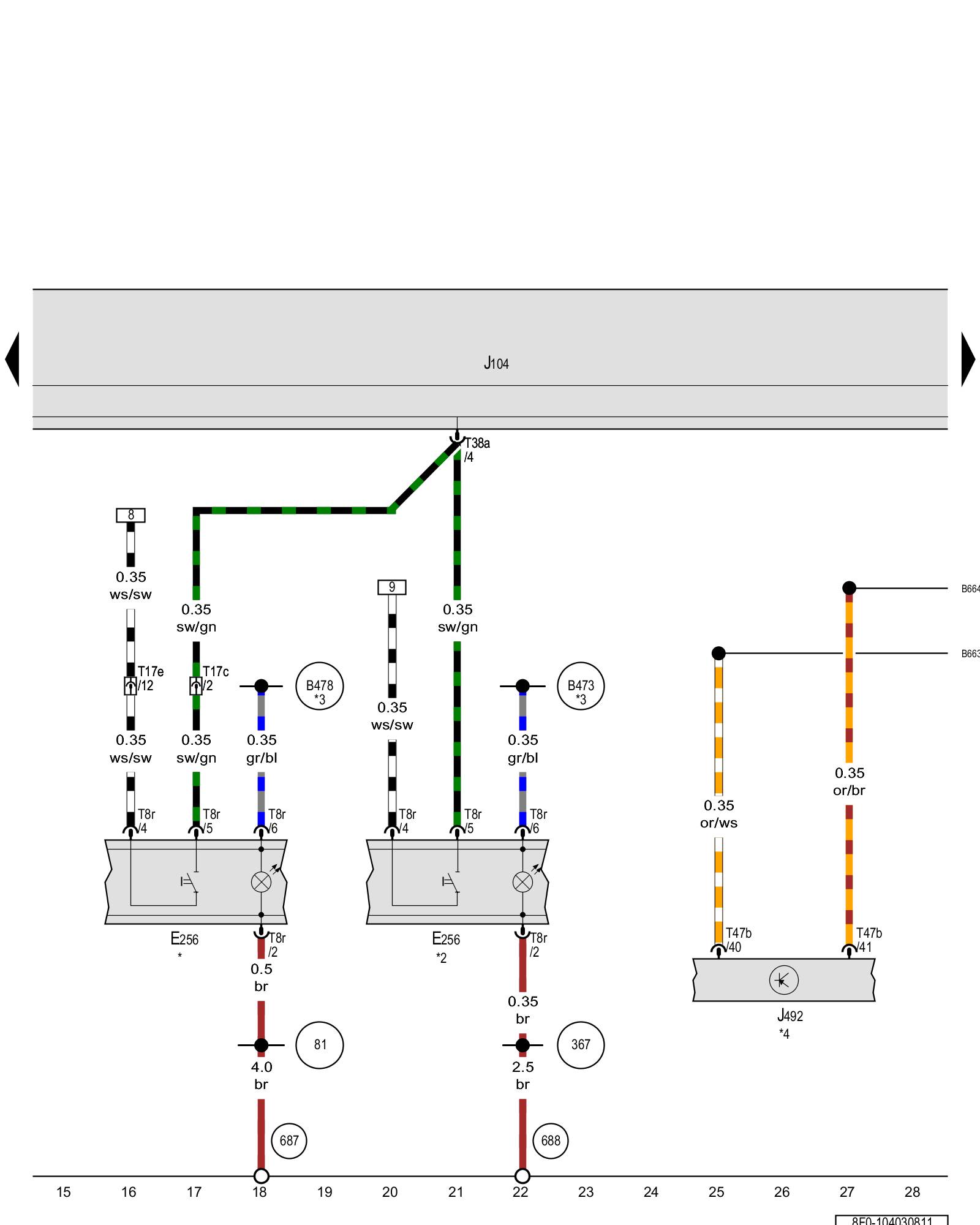

Diagram 104/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


ASR/ESP button, ABS control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E256 - ASR/ESP button Locations

J104 - ABS control module Control Modules in Front Part Of Vehicle

J492 - All wheel drive control module Control Modules in rear part of vehicle, overview

T8r - 8-pin connector

T17c - 17-pin connector, black Overview Of Connector Stations

T17e - 17-pin connector Overview Of Connector Stations

T38a - 38-pin connector Locations

T47b - 47-pin connector Locations

(81) - Ground connection 1 (in instrument panel wiring harness)

(367) - Ground connection 2 (in main wiring harness)

(687) - Ground connection 1 on center tunnel Locations

(688) - Ground connection 2 on center tunnel Locations

(B473) - Connection 9 (in main wiring harness)

(B478) - Connection 14 (in main wiring harness)

(B663) - Suspension sensor CAN bus high connection (in main wiring harness)

(B664) - Suspension sensor CAN bus low connection (in main wiring harness)

* - Only for vehicles with navigation system

*2 - Only for vehicles without a navigation system

*3 - Refer to applicable standard equipment wiring diagram

*4 - Only for vehicles with all wheel drive
