Vacuum Pump (V192) Overview

Vacuum Pump (V192) Overview

Depending on the engine install, a vacuum pump is installed to support the brake booster.

• Vacuum Pump, Turbo FSI 4-Cylinder, removing and installing, refer to => [ Vacuum Pump, Turbo FSI 4-Cylinder ] Vacuum Pump, Turbo FSI 4-Cylinder.

• Vacuum Pump, FSI V6, removing and installing, refer to => [ Vacuum Pump, FSI V6, ] Vacuum Pump, FSI V6,.

• Vacuum Pump, removing and installing, TFSI V6, refer to => [ Vacuum Pump, V6 TFSI ] Vacuum Pump, V6 TFSI.

• Vacuum Pump, V192, removing and installing, refer to => [ Brake System Vacuum Pump (V192) ] Brake System Vacuum Pump (V192).

• Vacuum Pump, removing and installing, Audi RS 5, refer to => [ Brake System Vacuum Pump (V192), RS 5 ] Brake System Vacuum Pump (V192), RS 5.

• Only the vacuum pump is shown in the illustration and not the installation location.

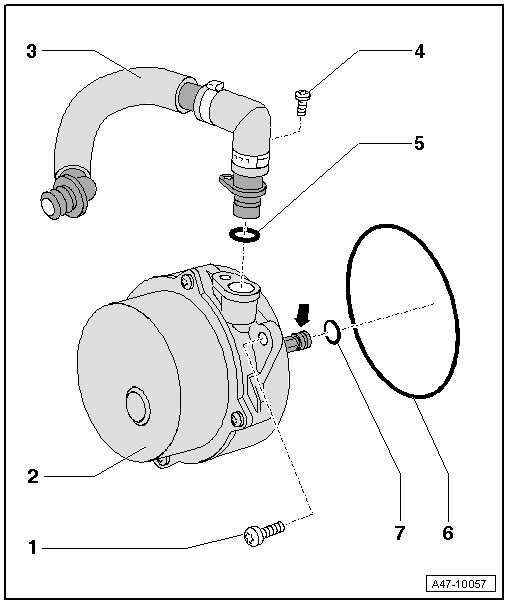

1 Bolt

• 9 Nm

• Remove to remove the pump.

• The pump is not designed to be disassembled.

2 Vacuum Pump

3 Vacuum Hose

• Secure with hose clamps that match those used in production, refer to the Parts Catalog.

4 Bolt

• 5 Nm

• Installing the bolt depends on the model.

• Alternatively, secure the vacuum hose with the hose clamp for the vehicle version, refer to the Parts Catalog.

5 O-Ring

• Replace

• Installation of the o-ring depends on the model.

6 O-Ring

• Replace

• Installation of the o-ring depends on the model.

7 O-Ring

• Replace

• Installation of the o-ring depends on the model.
