RS 5

Brake System Vacuum Pump (V192) Overview

The electrical vacuum pump is switched on by the engine control module depending on the intake line pressure.

• It is necessary to remove the left front wheel housing liner in order to remove the vacuum pump.

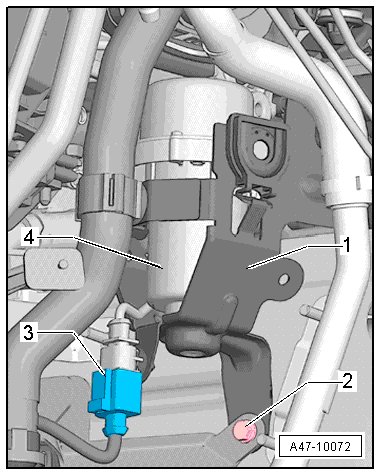

• View brake system vacuum pump from underneath after removing the left front wheel housing liner.






1 Bracket

• To remove, remove the brake system vacuum pump.

• Removing and Installing, refer to => [ Brake System Vacuum Pump (V192) Bracket, RS 5 ] Brake System Vacuum Pump (V192) Bracket, RS 5.

2 Bracket Bolt

• 20 Nm

3 Electrical Connector

4 Brake System Vacuum Pump

• Removing and Installing, refer to => [ Brake System Vacuum Pump (V192), RS 5 ] Brake System Vacuum Pump (V192), RS 5.

• Checking, refer to => [ Brake System Vacuum Pump (V192), Checking, RS 5 ] Brake System Vacuum Pump (V192), Checking, RS 5.

• It is necessary to remove the left front wheel housing liner in order to remove the vacuum pump.

• View brake system vacuum pump inside the engine compartment, in the front on the left side.






1 Bracket Bolt

• 20 Nm

2 Brake System Vacuum Pump

• Removing and Installing, refer to => [ Brake System Vacuum Pump (V192), RS 5 ] Brake System Vacuum Pump (V192), RS 5.

• Checking, refer to => [ Brake System Vacuum Pump (V192), Checking, RS 5 ] Brake System Vacuum Pump (V192), Checking, RS 5.

• It is necessary to remove the left front wheel housing liner in order to remove the vacuum pump.

3 Check Valve

• Removing and Installing, refer to => [ Check Valve, RS 5 ] Check Valve, RS 5.

• Checking, refer to => [ Check Valve, Checking, RS 5 ] Check Valve, Checking, RS 5.

4 Nut

• Secondary pump hose bracket.

• 20 Nm

5 Bracket Bolt

• 20 Nm
