Inner Door Seal

Inner Door Seal

Removing

- Remove lower A pillar trim..

- Remove the sill panel strip..

- Remove rear side trim..

- Remove the inner door seal from the body flange.

Installation






Installation is reverse order of removal, but note the following:

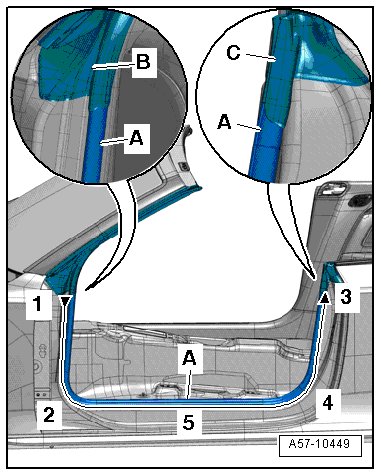

- Attach the inner door seal - A - to the body flange in sequence - 1 through 5 -, as illustrated.

• The A-pillar seal and the rear window shaft strip must be installed.

Continuing installation sequence:

- Attach the door seal to the top of the A-pillar - B -.

- Attach the door seal to the body flange near the A-pillar and sill panel strip.

- Attach the door seal at the top of the B-pillar to the inside of the window shaft strip - C -.

- Attach the door seal to the body flanges near the B-pillar and sill panel strip.

- Attach the door seal to the body flange near the sill panel.

- Press on the door seal for its entire length.

- Install the rear side trim panel..

- Install the sill panel strip..

- Install the lower A-pillar trim..
