Door Seal

Door Seal

Removing






- Remove the exterior mirror. Refer to => [ Mirror Adjusting Unit Mount ] Mirror Adjusting Unit Mount.

- Remove the outer window shaft strip - 3 -. Refer to => [ Outer Window Shaft Strip ] Outer Window Shaft Strip.

- Remove the door shell cover. Refer to => [ Inner Door Panel Cover ] Inner Door Panel Cover.

- Remove the bass speaker.

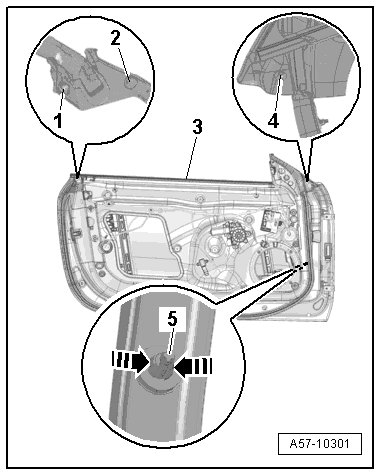

- Remove the retaining studs - 1, 2 and 4 - from the door shell.

- Reach through the openings and carefully press the retaining springs - arrows - in the door seal and inner window shaft strip clips - 5 - from inside to outside.

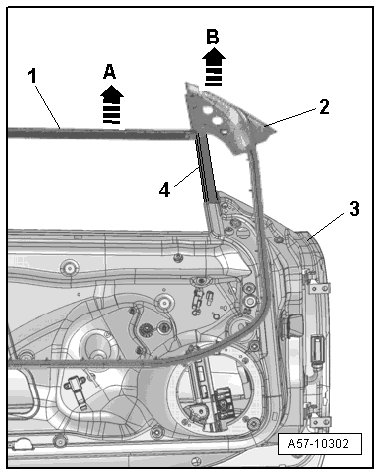

- Remove the door seal and inner window shaft strip - 1 - all around - arrow A -.






- Remove the retaining studs from the door shell in the exterior mirror area.

- Remove the window guide strip - 4 - from the door window guide rail.

- Remove the rearview mirror housing - 2 - upward from the door shell - 3 - - arrow B -.

Installing






Installation is reverse of removal, but note the following:

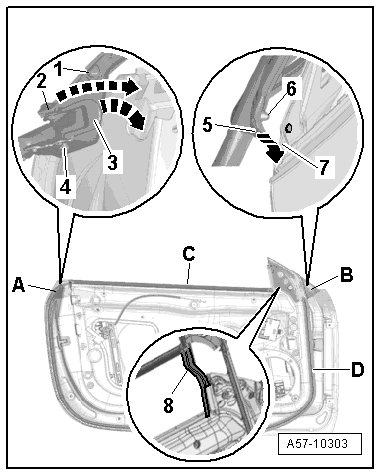

- Install the door seal and inner window shaft seal in the sequence - A to D - as shown in the illustration while following the procedure below:

- Position the molded piece on the B-pillar while sliding the rubber tabs - 2 - and - 3 - into the door shell - arrows - and pressing the retaining studs - 1 - and - 4 - on completely.

- Slide the window guide strip - 8 - into the door window guide rail.

- Slide the front exterior mirror seal onto the door shell. The slit - 5 - must lie on the inner door panel - 7 - - arrow -. Press the retaining studs - 6 - on completely.

- Slide the inner window shaft strip onto the door fold.

- Position the door seal on the door shell and press the clips on until they engage audibly.

- Install the bass speaker.

- Install the door shell cover. Refer to => [ Inner Door Panel Cover ] Inner Door Panel Cover.

- Install the outer window shaft strip. Refer to => [ Outer Window Shaft Strip ] Outer Window Shaft Strip.

- Install the exterior mirror. Refer to => [ Exterior Rearview Mirror Housing ] Exterior Rearview Mirror Housing.
