Rear Seal

Rear Seal

Danger of personal injury if the convertible top is not completely open.

• Bleed the hydraulic pressure completely before starting any work on the convertible top system.

• Reason: after approximately 6 minutes the convertible top control module will bleed the hydraulic pressure and the convertible top could fall down uncontrolled.

• All work must be performed with the hydraulic pressure bled.

Removing






- Open the convertible top until the displayed position of the top and the convertible top compartment cover is reached.

- Turn off the ignition and press the convertible top operation switch (E137) - 1 - for approximately 5 seconds.






• The pressure in the hydraulic system will come down.

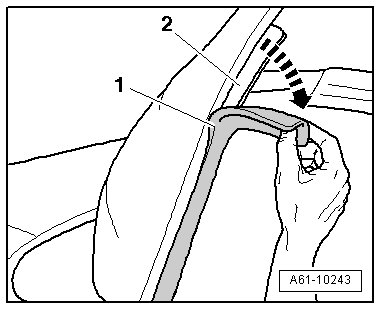

- Remove the side rear seal - 1 - from the bracket - 2 - - arrow -.

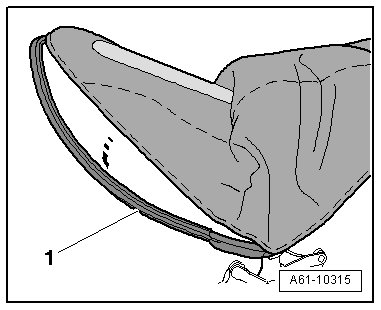

- Remove the lower rear seal - 1 - from the bracket - arrow -.






- Remove the rear seal.

Installation

Install in reverse order of removal. Note the following:

- Press the rear seal onto the bracket until it locks in.
