Front Seal

Front Seal

Removing






- Remove the front trim. Refer to => [ Front Trim ] Front Trim.

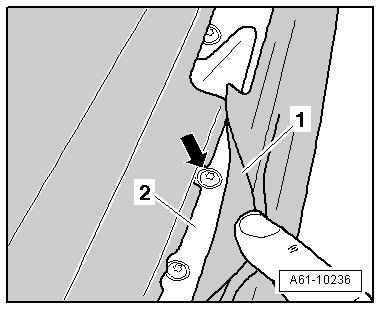

- Remove the seal - 1 - and remove the bolts - arrow - from the retaining strip - 2 -.

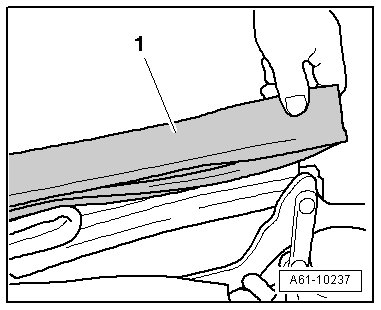

- Remove the side seal - 1 -.






- Remove the front seal and the retaining strip.

Installation

• Tightening specifications, refer to => [ Seals Overview ] Seals Overview.

Install in reverse order of removal. Note the following:

- Install the front trim. Refer to => [ Front Trim ] Front Trim.
