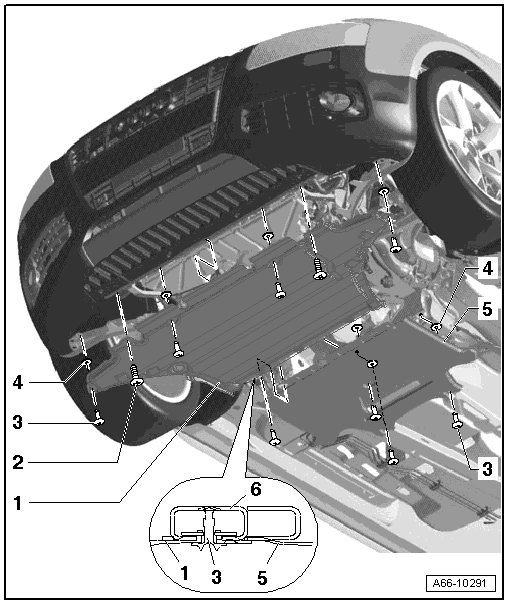

Front Noise Insulation Overview

Front Noise Insulation Overview






1 Noise Insulation

• Removing

• Front wheel spoiler removed, refer to => [ Front Wheel Spoiler Overview ] Service and Repair.

- Remove the bolts - 1 - and - 2 - and remove the noise insulation toward the rear under the bumper.

• When installing, slide the front noise insulation in under the bumper.

2 Bolt

• 5 Nm

• Quantity 2

3 Quick-release Fastener

• Rotate 180° to the left to remove.

• When installing, the connection must engage when rotating.

4 Window

5 Rear Noise Insulation

6 Lock Carrier
