Tunnel Side Trim

Tunnel Side Trim

Special tools, testers and auxiliary items required

• Fixture for Seat Repair (VAS 6136)

• Removal and installation can only be performed with the front seat removed.

Removing

• Follow all safety precautions when working on pyrotechnic components. Refer to => [ Restraint System Components ] Description and Operation.

• Before handling pyrotechnical components (for example, disconnecting the connector), the person handling them must "discharge static electricity". For example, by briefly touching the door striker pin.

- Remove the front seat:

• Standard seat and Sport seat (manual), refer to => [ Manual Standard Front Seat ] Manual Standard Front Seat.

• Standard and sport power seat, comfort seat and super sport seat, refer to => [ Power Standard Front Seat ] Power Standard Front Seat.

- Attach the front seat to the (VAS 6136). Refer to => [ Installing the Front Seat on VAS 6136 ] Installing the Front Seat On VAS 6136.

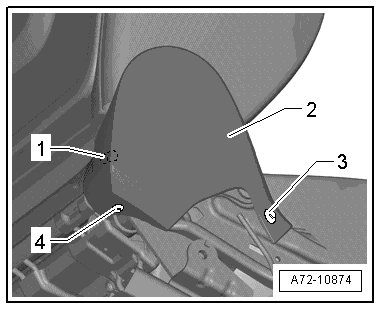

- Remove the expanding rivets - 3 - and - 4 -.






- Remove tunnel side trim panel - 2 - upward.

• Make sure the tab - 1 - is not damaged when removing the trim.

Installing

• Follow all safety precautions when working on pyrotechnic components. Refer to=> [ Restraint System Components ] Description and Operation.

• Before handling pyrotechnical components (for example, connecting electrical connector), the person handling them must "discharge static electricity". For example, by briefly touching the door striker pin.

Installation is reverse of removal, but note the following:

• Make sure the tab - 1 - is seated correctly.






• Make sure the connectors are installed all the way in and are secure.

Connect the battery with the ignition switched on. Pyrotechnic components could deploy after connecting the battery if they were not repaired correctly. Individuals must not be inside the vehicle when connecting the battery.

- Connect the battery Ground (GND) cable with the ignition turned on.

• If the airbag indicator lamp (K75) indicates a fault after installation, the Diagnostic Trouble Code (DTC) memory must be checked, deleted and checked again. Refer to vehicle diagnostic tester.
