Headrest Guide

Headrest Guide

Removing

• Follow all safety precautions when working on pyrotechnic components. Refer to => [ Restraint System Components ] Description and Operation.

• Before handling pyrotechnical components (for example, disconnecting the connector), the person handling them must "discharge static electricity". For example, by briefly touching the door striker pin.

- Remove the front seat:

• Standard seat and Sport seat (manual), refer to => [ Manual Standard Front Seat ] Manual Standard Front Seat.

• Standard seat, Sport seat (power) and Comfort seat: => [ Power Standard Front Seat ] Power Standard Front Seat.

- Attach the front seat to the (VAS 6136). Refer to => [ Installing the Front Seat on VAS 6136 ] Installing the Front Seat On VAS 6136.

- Remove backrest cover panel. Refer to => [ Backrest Cover ] Backrest Cover.

- Remove the headrests. Refer to => [ Headrests with Locking Mechanism ] Headrests With Locking Mechanism.

- Remove the front cover with the cushion. Refer to => [ Backrest Cover with Cushion ] Backrest Cover With Cushion.

Headrest guide without release button:

- Press the retaining tabs - arrows - on the headrest guide toward the center of the headrest guide.

- Hold the retaining tabs down.

- Pull the headrest guide up out of the backrest frame - 2 -.

Headrest guide with release button:

- Press the retaining tabs - arrows - on the headrest guide - 1 - toward the center of the headrest guide.

- Hold the retaining tabs down.

- Pull the headrest guide up out of the backrest frame - 2 -.

Installing

• Follow all safety precautions when working on pyrotechnic components. Refer to => [ Restraint System Components ] Description and Operation.

• Before handling pyrotechnical components (for example, connecting electrical connector), the person handling them must "discharge static electricity". For example, by briefly touching the door striker pin.

Installation is reverse of removal, but note the following:

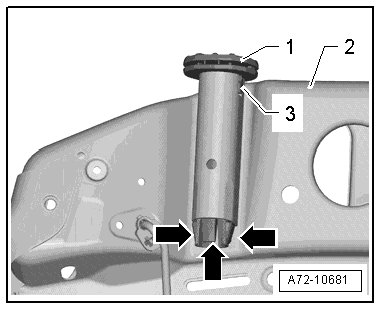

Headrest guide without release button:

• When sliding the headrest guide - 1 - in, make sure the tab - 3 - engages correctly on the backrest frame - 2 -.

• Make sure the retaining tabs - arrows - are engaged in the backrest frame - 2 - correctly.

Continuation for headrest guide without and with release button

• Make sure the connectors are installed all the way in and are secure.

Connect the battery with the ignition switched on. Pyrotechnic components could deploy after connecting the battery if they were not repaired correctly. Individuals must not be inside the vehicle when connecting the battery.

- Connect the battery Ground (GND) cable with the ignition turned on.

• If the airbag indicator lamp (K75) indicates a fault after installation, the Diagnostic Trouble Code (DTC) memory must be checked, deleted and checked again. Refer to vehicle diagnostic tester.
