Connecting Cable

Connecting Cable

Removing






- Remove the entry assistance cover. Refer to => [ Entry Assistance Cover ] Entry Assistance Cover.

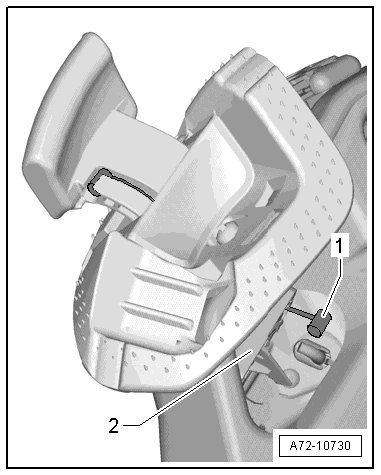

- Tilt the bracket - arrow - up as far as the stop and hold it in that position.

- Disengage the connecting cable - 1 - at the bracket.

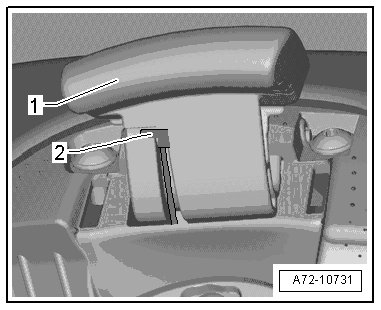

- Push the handle - 1 - forward as far as the stop.






- Disengage the connecting cable - 2 - at the handle.

- Remove the connecting cable.

Installing

To install, perform the steps used in removal in reverse order.
