Backrest Cover

Backrest Cover

Special tools, testers and auxiliary items required

• Pry Lever - Rmv Outside Mirror (80 - 200)

• Removal and installation can be done with seat installed.

• Removing and installing a standard front seat is described. It is identical for the other seat versions.

• The illustration shows a backrest cover without a storage net.

• The storage net cannot be removed from the backrest cover and can only be replaced together with the backrest cover.

Removing






Danger of being injured by burrs on the backrest cover.

Wear protective gloves.

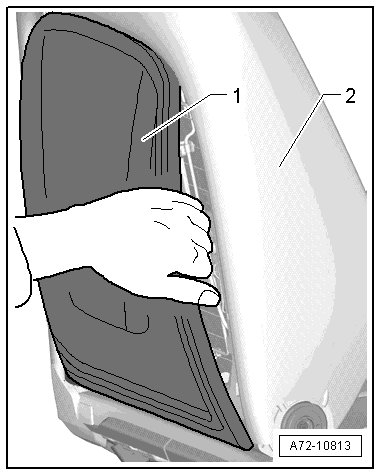

- Reach behind the backrest cover - 1 - as shown in the illustration, and pull it to the right and off the seat backrest - 2 -.

• If this is difficult, the (80 - 200).

- Repeat the process on the other side.

- Loosen all the hooks.

- Remove the backrest cover further and roll it up until the upper hooks come out of the backrest frame.

- Remove backrest cover upward.

Installing






Installation is reverse of removal, but note the following:

- First push the upper hook - 2 - under the upper backrest cross member - 1 -.

- Tilt the backrest cover down and engage the side retaining tabs - 3 - and - 5 - and the lower hooks - 4 -.

- Make sure the tabs on the side fit correctly into the backrest frame and the lower hooks are bent correctly over the backrest frame.

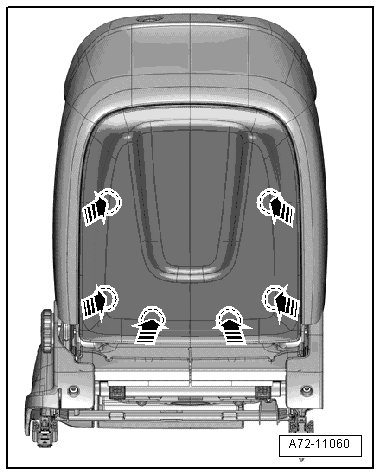

- Press the backrest cover firmly into the areas marked with circles - arrows - in the direction of the backrest.






- Check if the backrest cover is correctly locked.

• It must not be possible to move the backrest cover at the bottom.
