Backrest Cover, Removing From Cushion, Super Sport Seat

Backrest Cover, Removing from Cushion, Super Sport Seat

Special tools, testers and auxiliary items required

• Upholstery clip pliers (V.A.G 1634)

Removing






- Remove the cover with the cushion; refer to => [ Backrest Cover and Cushion, Super Sport Seat ] Backrest Cover and Cushion, Super Sport Seat.

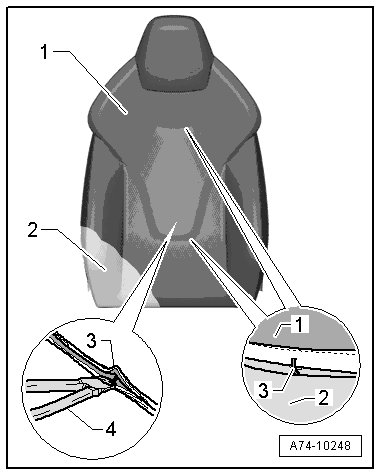

- Remove the cover - 1 - from the upholstery - 2 - as far as possible.

- Cut through the upholstery clips - 3 - using pliers - 4 -.

- Remove cover from cushion.

Installing

Installation is reverse of removal, but note the following:

- When installing new upholstery clips, use (V.A.G 1634).
