Center Storage Compartment

Center Storage Compartment

Removing






- Remove the seat bench. Refer to => [ Bench Seat ] Bench Seat.

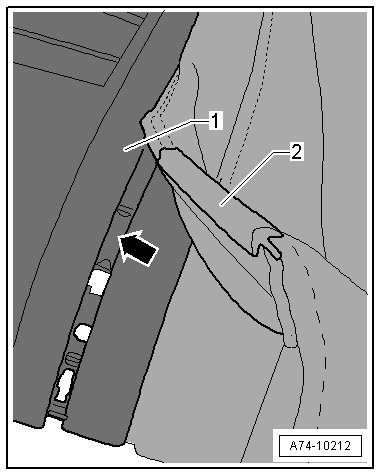

- Remove the molding - 2 - on both side from the center storage compartment mounting - arrow - - 1 -.

- Remove the bolts - 1 - and - 3 -.






- Remove the center storage compartment - 2 - on the seat frame - arrows -.

- Remove the center storage compartment from the seat frame.

Installing

Installation is reverse of removal, but note the following:

- When installing, make sure all the tabs slide onto the seat frame and the center storage compartment engages completely.

- Align the cover molding to the center storage compartment and then clip the cover into the center storage compartment mount.

- Make sure the covers are secured on the center storage compartment without wrinkles.

Tightening specifications, refer to => [ Bench Seat Assembly Overview ] Bench Seat Assembly Overview.
