Cover and Upholstery, Bench Seat Without Center Storage Compartment Assembly Overview

Cover and Upholstery, Bench Seat without Center Storage Compartment Assembly Overview

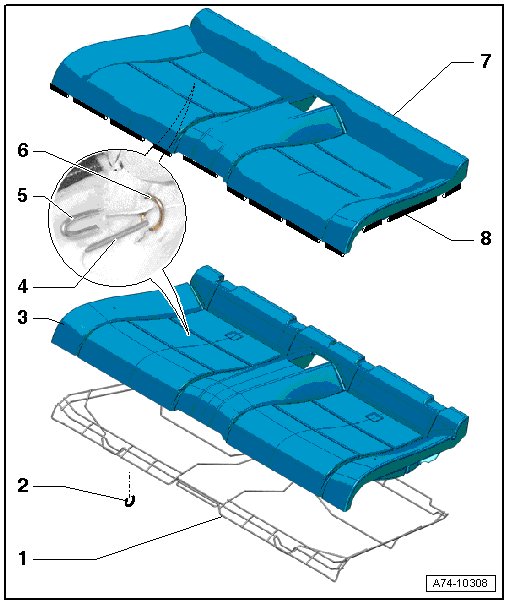

1 Seat Frame

2 Cushion Clamp

• For attaching the cover to the seat frame

• Always replace if removed

• Install in same location as before removal

3 Cushion

• Cover with upholstery, removing and installing, refer to => [ Cover and Cushion, Seat Bench ] Cover and Cushion, Seat Bench

• Cover, Separating from Cushion and Connecting, refer to => [ Seat Bench Cover, Removing from Cushion ] Seat Bench Cover, Removing From Cushion

4 Wire

• In foam in upholstery

• For securing cover to upholstery

5 Contour Wire

• Pushed into the cover

6 Cushion Clamp

• For securing cover to upholstery

• Always replace if removed

• Install in same location as before removal

7 Cover

• Cover with upholstery, removing and installing, refer to => [ Cover and Cushion, Seat Bench ] Cover and Cushion, Seat Bench

• Cover, separating from cushion and connecting, refer to => [ Seat Bench Cover, Removing from Cushion ] Seat Bench Cover, Removing From Cushion

8 Molding

• Sewn into cover

• For engaging the cover to the seat frame
