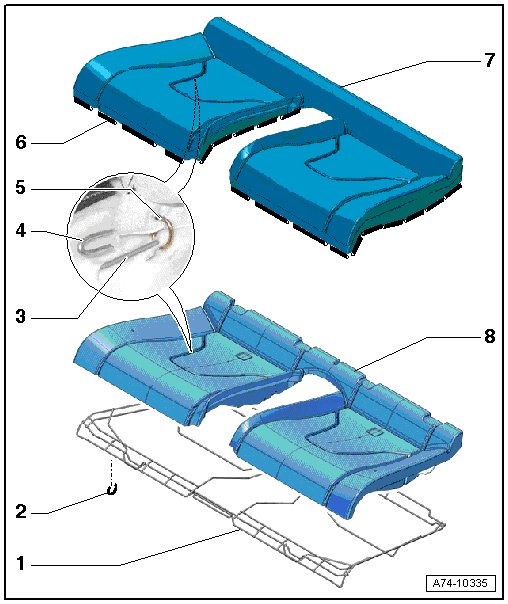

Cover and Upholstery, Bench Seat With Center Storage Compartment Assembly Overview

Cover and Upholstery, Bench Seat with Center Storage Compartment Assembly Overview






1 Seat Frame

2 Cushion Clamp

• For attaching the cover to the seat frame

• Always replace if removed

• Install in same location as before removal

3 Wire

• In foam in upholstery

• For securing cover to upholstery

4 Contour Wire

• Pushed into the cover

5 Cushion Clamp

• For securing cover to upholstery

• Always replace if removed

• Install in same location as before removal

6 Molding

• Sewn into cover

• For engaging the cover to the seat frame

7 Cover

• Cover with upholstery, removing and installing, refer to => [ Cover and Cushion, Seat Bench ] Cover and Cushion, Seat Bench

• Cover, separating from cushion and connecting, refer to => [ Seat Bench Cover, Removing from Cushion ] Seat Bench Cover, Removing From Cushion

8 Cushion

• Removing and installing, refer to => [ Cover and Cushion, Seat Bench ] Cover and Cushion, Seat Bench

• Cover, separating from cushion and connecting, refer to => [ Seat Bench Cover, Removing from Cushion ] Seat Bench Cover, Removing From Cushion
