Headrests Assembly Overview

Headrests Assembly Overview

• The headrest is a fixed component of the backrest upholstery and can only be removed together with the backrest upholstery.

• It is not possible to separate the headrest from the backrest upholstery.

• The backrest cover was not shown in the illustration for clarity purposes.

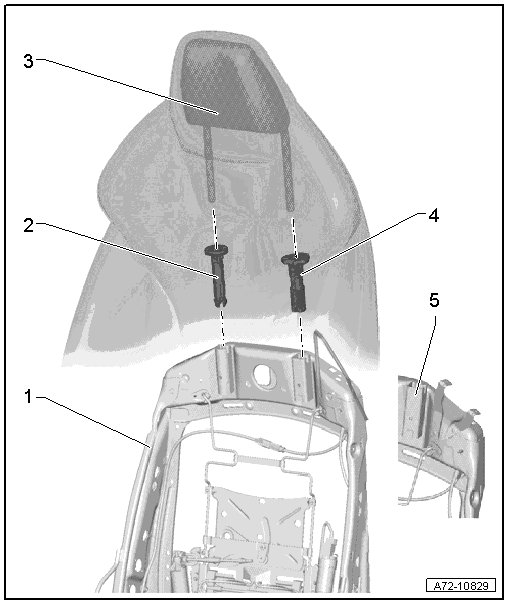

1 Backrest frame

• with bracket

• The bracket cannot be removed

2 Headrest guide

• without release button

• always installed on right side of backrest

• Removing and installing, refer to => [ Headrest Guide ] Headrest Guide

3 Headrest

• with padding

• Headrest laid in foam in upholstery

• Removing and installing, refer to => [ Backrest Cover and Cushion, Super Sport Seat ] Backrest Cover and Cushion, Super Sport Seat

4 Headrest guide

• With release button

• Removing and installing, refer to => [ Headrest Guide ] Headrest Guide

• always installed on left side of backrest

5 Backrest frame

• with support plate

• Support plate riveted to the backrest frame

• Support Plate, Removing and Installing => [ Support Plate ] Support Plate
