Backrest Assembly Overview

Backrest Assembly Overview

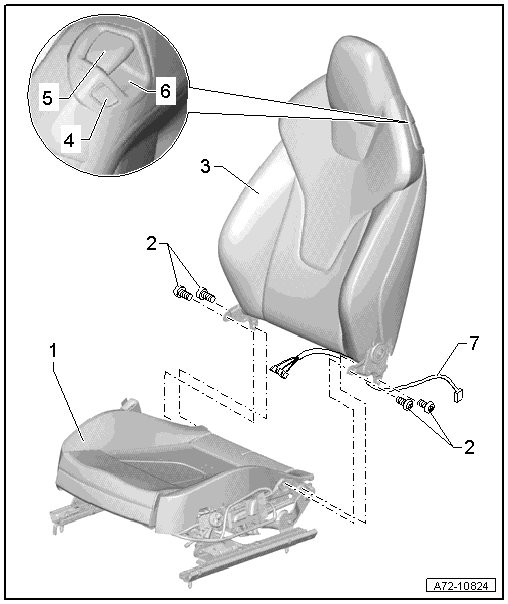

1 Seat Pan

2 Bolt

• 33 Nm

• Self-locking

• Always replace if removed

• Threaded holes for screws must be cleaned, for example, with thread cutter

3 Backrest

• Removing and installing, refer to => [ Backrest ] Backrest

4 Driver Entry Assistance Button (E358)

• Front passenger side: front passenger entry assistance button (E359)

• Removing and installing, refer to => [ Entry Assistance Button ] Entry Assistance Button

5 Handle

• With bracket (entry assistance)

• Removing and installing, refer to => [ Entry Assistance Handle with Bracket ] Entry Assistance Handle With Bracket

6 Entry Assist Trim

• Removing and installing, refer to => [ Entry Assistance Trim ] Entry Assistance Trim

7 Wiring Harness

• From the side airbag to the coupling station

• Depending on optional equipment, there may be more wiring harnesses, such as for seat heating, lumbar support
