Storage Compartment Assembly Overview

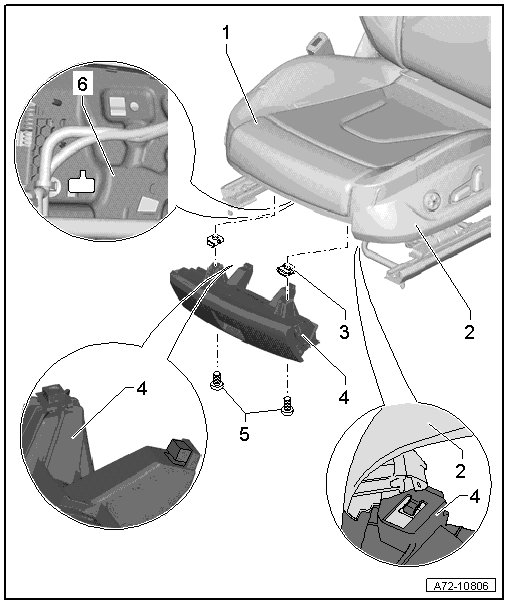

Storage Compartment Assembly Overview






1 Front Seat

2 Sill-Side Trim

3 Threaded Clip

• Quantity: 2

4 Storage Compartment

• Various versions

• For manual standard and sport front seats

• For the power standard and sport front seats (electrically adjustable) and comfort and super sport front seats

• Removing and installing, refer to => [ Storage Compartment ] Storage Compartment

• Cannot be disassembled, only available as a complete replacement part

• For the correct allocation, refer to Parts Catalog

5 Bolt

• 8 Nm

• Quantity: 2

6 Seat Pan Upper Frame
