Memory Seat/Steering Column Adjustment and Seat Heating Control Module Assembly Overview

Memory Seat/Steering Column Adjustment and Seat Heating Control Module Assembly Overview

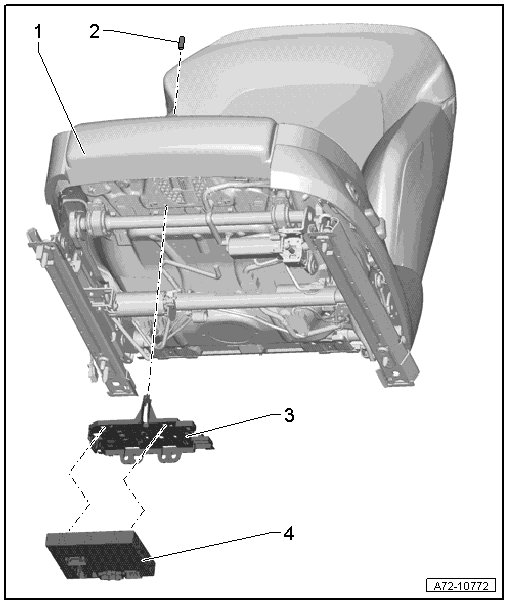

1 Front Seat

2 Pin

• For securing the bracket to the seat pan

3 Bracket

• Engaged and clipped in the seat pan

• Removing and installing, refer to => [ Memory Seat/Steering Column Adjustment Control Module Bracket ] Memory Seat/Steering Column Adjustment Control Module Bracket

4 Memory Seat/Steering Column Adjustment and Seat Heating Control Module

• Driver side: memory seat/steering column adjustment control module (J136)

• Front passenger side: passenger memory seat control module (J521)

• Comfort seat:

• Driver side left front seat ventilation control module (J800)

• Driver side: left cabin heater control module (J846)

• Comfort seat:

• Front passenger side: right front seat ventilation control module (J799)

• Front passenger side: right cabin heater control module (J847)

• Vehicles with Sport seat:

• Driver side: left cabin heater control module (J846)

• Front passenger side: right cabin heater control module (J847)

• clipped with the bracket

• Removing and installing, refer to => [ Memory Seat/Steering Column Adjustment Control Module ] Memory Seat/Steering Column Adjustment Control Module
