Height Adjustment Motor Assembly Overview

Height Adjustment Motor Assembly Overview

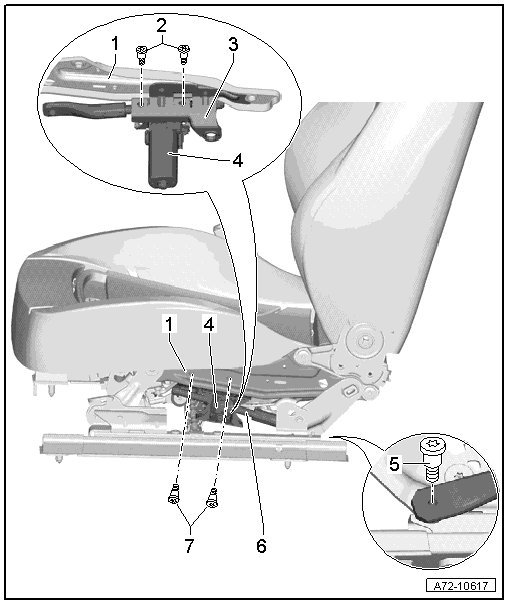

1 Seat Pan

2 Screws

• 10 Nm

• Replace

• Quantity: 2

• Self-locking

• Threaded holes for screws must always be cleaned, for example, with thread cutter

3 Bracket

• Bolted with the seat pan

4 Height Adjustment Motor

• Driver side: driver seat height adjustment motor (V245)

• Front passenger side: front passenger seat height adjustment motor (V246)

• Removing and installing, refer to => [ Height Adjustment Motor ] Height Adjustment Motor

5 Bolt

• 18 Nm

The bolt has a left-hand thread.

• Self-locking

• Replace

• Follow the information given when removing and installing, refer to => [ Height Adjustment Motor ] Height Adjustment Motor

• Threaded holes for screws must always be cleaned, for example, with thread cutter

6 Adjusting Spindle

• Pre-adjusted by the manufacturer

• Component of the height adjustment motor

7 Screws

• 28 Nm

• Quantity: 2

• Self-locking

• Replace

• Threaded holes for screws must always be cleaned, for example, with thread cutter
