Backrest Assembly Overview

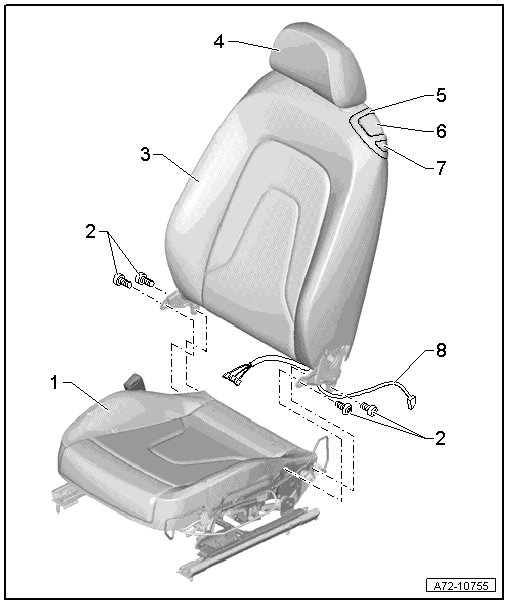

Backrest Assembly Overview






1 Seat Pan

2 Screws

• Self-locking

• Always replace if removed

• Threaded holes for screws must be cleaned, for example, with thread cutter

• 33 Nm

3 Backrest

• Removing and installing, refer to => [ Backrest ] Backrest

4 Headrest

• Power

• Removing and installing, refer to => [ Power Headrests ] Power Headrests

5 Entry Assist Trim

• Removing and installing, refer to => [ Entry Assistance Trim ] Entry Assistance Trim

6 Handle

• With bracket (entry assistance)

• Removing and installing, refer to => [ Entry Assistance Handle with Bracket ] Entry Assistance Handle With Bracket

7 Button

• With entry assist

• Assembly overview, refer to => [ Entry Assistance Button Assembly Overview ] Entry Assistance Button Assembly Overview

• Removing and installing, refer to => [ Entry Assistance Button ] Entry Assistance Button

8 Wiring Harness

• From the side airbag to the coupling station

• Depending on optional equipment, there may be more wiring harnesses, such as for backrest heating, lumbar support
