Seat Ventilation Control Module Assembly Overview

Seat Ventilation Control Module Assembly Overview

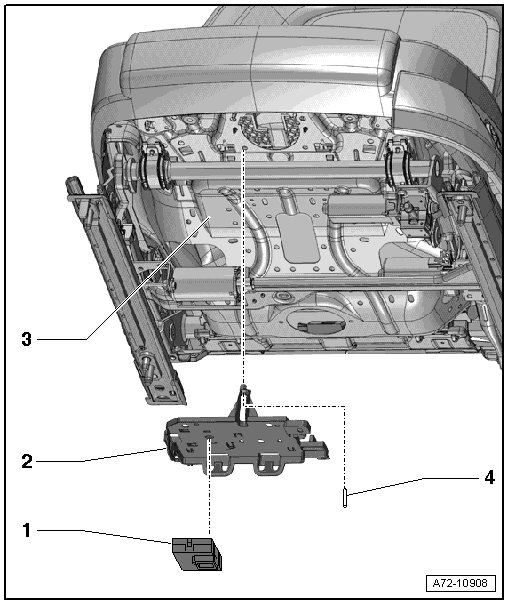

1 Seat Ventilation Control Module (integrated in the seat heating)

• Driver side left front seat ventilation control module (J800)

• Front passenger side: right front seat ventilation control module (J799)

• Clipped with the bracket

• Removing and installing, refer to => [ Right Front Seat Ventilation Control Module (Seat Heater Function Integrated) ] Right Front Seat Ventilation Control Module (Seat Heater Function Integrated)

2 Bracket

• Removing and installing, refer to => [ Memory Seat/Steering Column Adjustment Control Module Bracket ] Memory Seat/Steering Column Adjustment Control Module Bracket

3 Front Seat

4 Pin

• For securing the bracket to the seat pan
