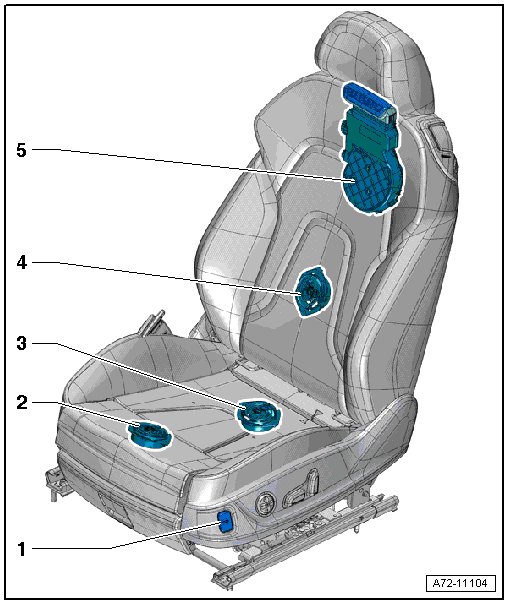

Seat Cushion and Backrest Fan Assembly Overview

Seat Cushion and Backrest Fan Assembly Overview






1 Cabin Heater Switch

• Driver side: left cabin heater switch (E678)

• Front passenger side: right cabin heater switch (E679)

• Removing and installing, refer to => [ Left and Right Cabin Heater Switches ] Left and Right Cabin Heater Switches

2 Seat Cushion Fan

• Driver side: driver seat cushion blower fan (V390)

• Front passenger side: front passenger seat cushion blower fan (V391)

• Removing and installing, refer to => [ Seat Cushion Fan ] Seat Cushion Fan

3 Seat Cushion Fan 2

• Driver side: driver seat cushion blower fan 2 (V419)

• Front passenger side: front passenger seat cushion blower fan 2 (V420)

• Removing and installing, refer to => [ Seat Cushion Fan ] Seat Cushion Fan

4 Backrest Fan

• Driver side: driver seat backrest blower fan (V388)

• Front passenger side: front passenger seat backrest blower fan (V389)

• Removing and installing, refer to => [ Backrest Fan ] Backrest Fan

5 Cabin Heater Blower

• Driver side: left cabin heater fan (V450)

• Front passenger side: right cabin heater fan (V451)

• Removing and installing, refer to => [ Left and Right Cabin Heater Fan ] Left and Right Cabin Heater Fan

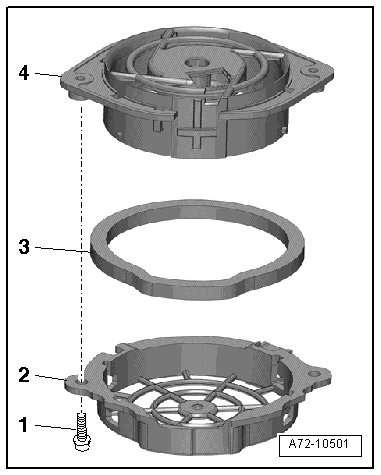

Seat Cushion Fan, Assembly Overview





1. Bolt - 1.5 Nm

2. Cover grille

3. Seal

4. Seat cushion fan
