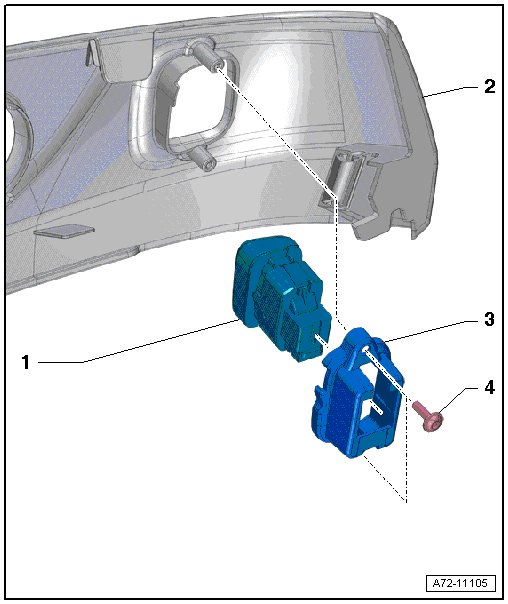

Cabin Heater Switch Assembly Overview

Cabin Heater Switch Assembly Overview






1 Cabin Heater Switch

• Driver side: left cabin heater switch (E678)

• Front passenger side: right cabin heater switch (E679)

• Removing and installing, refer to => [ Left and Right Cabin Heater Switches ] Left and Right Cabin Heater Switches

2 Sill-Side Trim

• Removing and installing, refer to => [ Sill Side Trim ] Sill Side Trim

3 Mount

• For the cabin heater switch

4 Bolt

• 0.4 Nm

• Quantity: 2
