Cabin Heater Assembly Overview

Cabin Heater Assembly Overview

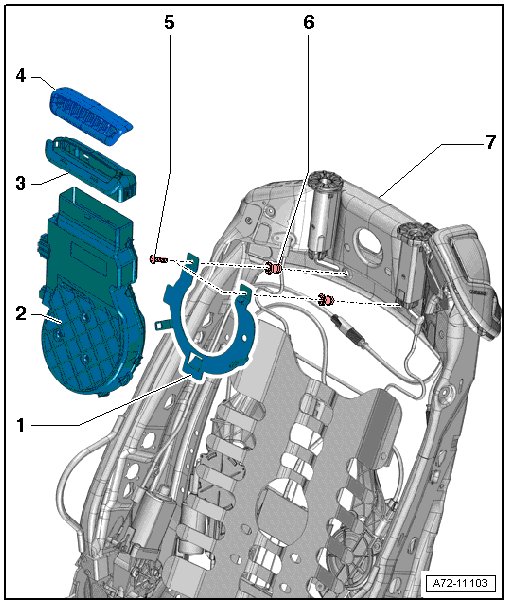

1 Bracket

• For cabin heater blower

• Removing and installing, refer to => [ Cabin Heater Blower Bracket ] Cabin Heater Blower Bracket

2 Cabin Heater Blower

• Driver side: left cabin heater fan (V450)

• Front passenger side: right cabin heater fan (V451)

• Removing and installing, refer to => [ Left and Right Cabin Heater Fan ] Left and Right Cabin Heater Fan

3 Connection

4 Cabin Heater Vent

• Removing and installing, refer to => [ Cabin Heater Vents ] Cabin Heater Vents

5 Bolt

• Quantity: 2

• 3.5 Nm

6 Rubber Bushing

• With a washer and a threaded nut

• Quantity: 2

7 Backrest Frame
