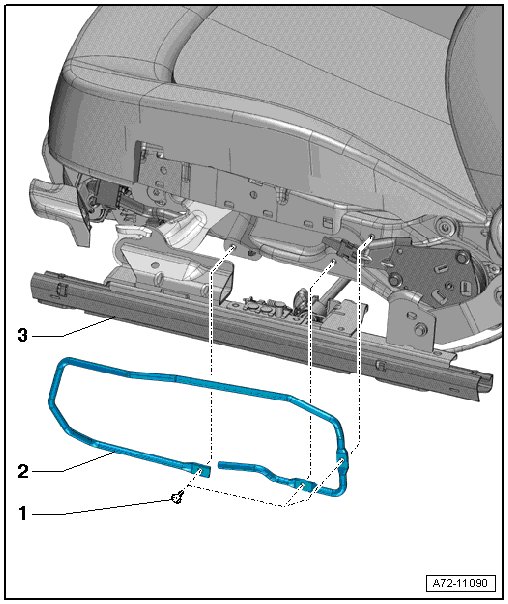

Sill Side Trim Retaining Bracket Assembly Overview

Sill Side Trim Retaining Bracket Assembly Overview






1 Bolt

• Quantity: 3

• 3.5 Nm

2 Retaining Bracket

• For sill side trim

• Removing and installing, refer to => [ Sill Side Retaining Bracket Trim ] Sill Side Retaining Bracket Trim

3 Front seat
