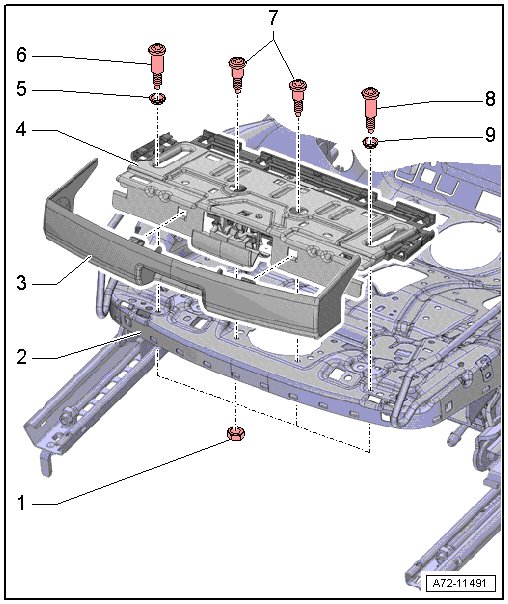

Seat Depth Adjuster Assembly Overview

Seat Depth Adjuster Assembly Overview






1 Nut

• Quantity: 4

• Replacing

2 Sport Seat

• With a seat depth adjuster

3 Trim

• For seat depth adjustment

• Removing and installing, refer to => [ Seat Depth Adjustor Trim ] Seat Depth Adjustor Trim

• Press on until it engages audibly

4 Seat Depth Adjuster

• Removing and installing, refer to => [ Seat Depth Adjuster ] Seat Depth Adjuster

5 Bushing

6 Bolt

• Replacing

• Use locking fluid when installing the bolt. For the correct locking fluid refer to the Parts Catalog

• 4 Nm

7 Screws

• Replacing

• Use locking fluid when installing the bolt. For the correct locking fluid refer to the Parts Catalog

• 4 Nm

8 Bolt

• Replacing

• Use locking fluid when installing the bolt. For the correct locking fluid refer to the Parts Catalog

• 4 Nm

9 Bushing
