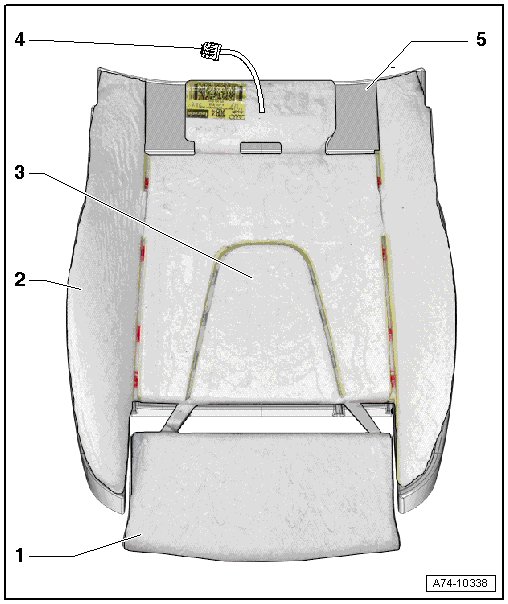

Seat Heating Element Assembly Overview, Super Sport Seat

Seat Heating Element Assembly Overview, Super Sport Seat






1 Seat Depth Adjuster Heating Element

• Connected to the seat heating element

2 Bolster Heating Element

• Bonded to the seat heating element

3 Seat Heating Element

• Bonded with upholstery

• Removing and installing, refer to => [ Seat Heating Element, Super Sport Seat ] Seat Heating Element, Super Sport Seat

4 Wiring

• Connected to the seat heating element

5 Cushion

• For seat pan
