Seat Cover and Padding, Lower Seat Frame Without Seat Depth Adjuster Assembly Overview

Seat Cover and Padding, Lower Seat Frame without Seat Depth Adjuster Assembly Overview

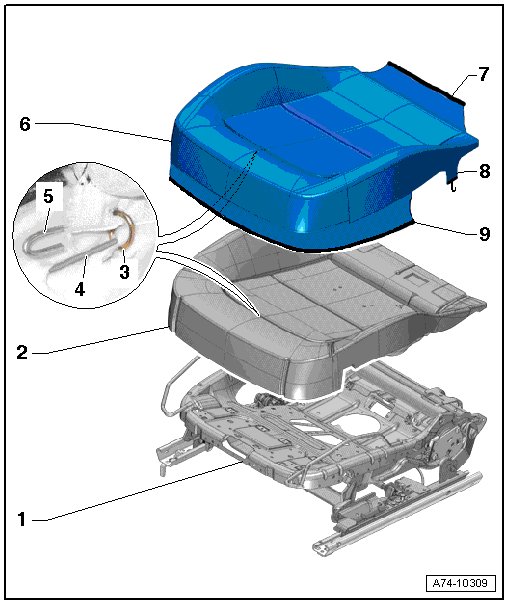

• The assembly overview is based on a manual or power standard front seat and comfort seat.






1 Seat Pan

2 Cushion

• Cover with upholstery, removing and installing, refer to => [ Cover and Upholstery, Seat Pan without Seat Depth Adjustor ] Cover and Upholstery, Seat Pan Without Seat Depth Adjustor

• Cover, separating from cushion and connecting, refer to => [ Cover Upholstery, Seat Pan without Seat Depth Adjustor, Separating and Connecting ] Cover Upholstery, Seat Pan Without Seat Depth Adjustor, Separating and Connecting

3 Cushion Clamp

• For securing cover to upholstery

• Always replace if removed

• Install in same location as before removal

4 Wire

• In foam in upholstery

• For securing cover to upholstery

5 Contour Wire

• Pushed into the cover

6 Cover

• Cover with upholstery, removing and installing, refer to => [ Cover and Upholstery, Seat Pan without Seat Depth Adjustor ] Cover and Upholstery, Seat Pan Without Seat Depth Adjustor

• Cover, separating from cushion and connecting, refer to => [ Cover Upholstery, Seat Pan without Seat Depth Adjustor, Separating and Connecting ] Cover Upholstery, Seat Pan Without Seat Depth Adjustor, Separating and Connecting

7 Retaining Channel

• Sewn into cover

• For engaging cover on seat pan upper frame

8 Tab

• With hooks

• For engaging cover on seat pan upper frame

9 Retaining Channel

• Sewn into cover

• For engaging cover on seat pan upper frame
