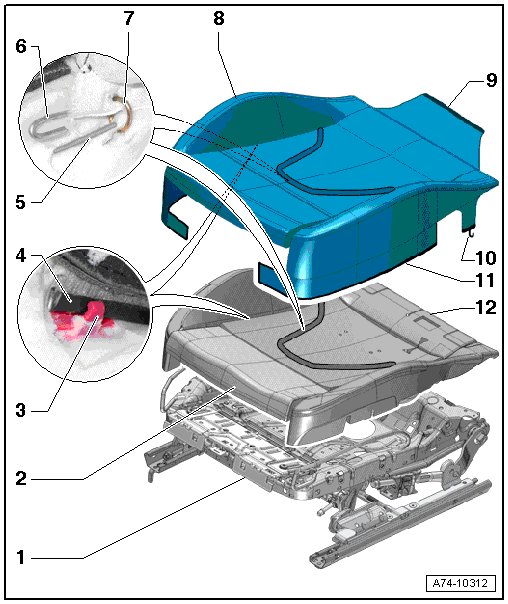

Cover and Padding, Lower Seat Frame With Seat Depth Adjuster Assembly Overview

Cover and Padding, Lower Seat Frame with Seat Depth Adjuster Assembly Overview

• The assembly overview is based on a manual or power sport front seat and super sport front seat.






1 Seat Pan

• With a seat depth adjuster

2 Cushion

• For the seat depth adjustment

3 Clip

• In foam in upholstery

4 Contour Strip

• Sewn into cover

• For securing cover to upholstery

5 Wire

• In foam in upholstery

• For securing cover to upholstery

6 Contour Wire

• Pushed into the cover

7 Cushion Clamp

• For securing cover to upholstery

• Always replace if removed

• Install in same location as before removal

8 Cover

• Cover with upholstery, removing and installing, refer to => [ Cover and Upholstery, Seat Pan with Seat Depth Adjust ] Cover and Upholstery, Seat Pan With Seat Depth Adjust

• Cover, separating from cushion and connecting, refer to => [ Cover Upholstery, Seat Pan with Seat Depth Adjustor, Separating and Connecting ] Cover Upholstery, Seat Pan With Seat Depth Adjustor, Separating and Connecting

9 Retaining Channel

• Sewn into cover

• For engaging cover on seat pan upper frame

10 Tab

• With hooks

• Sewn into cover

• For engaging cover on seat pan upper frame

11 Retaining Channel

• Sewn into cover

• For engaging cover on seat pan upper frame

12 Cushion

• Cover with upholstery, removing and installing, refer to => [ Cover and Upholstery, Seat Pan with Seat Depth Adjust ] Cover and Upholstery, Seat Pan With Seat Depth Adjust

• Cover, separating from cushion and connecting, refer to => [ Cover Upholstery, Seat Pan with Seat Depth Adjustor, Separating and Connecting ] Cover Upholstery, Seat Pan With Seat Depth Adjustor, Separating and Connecting
