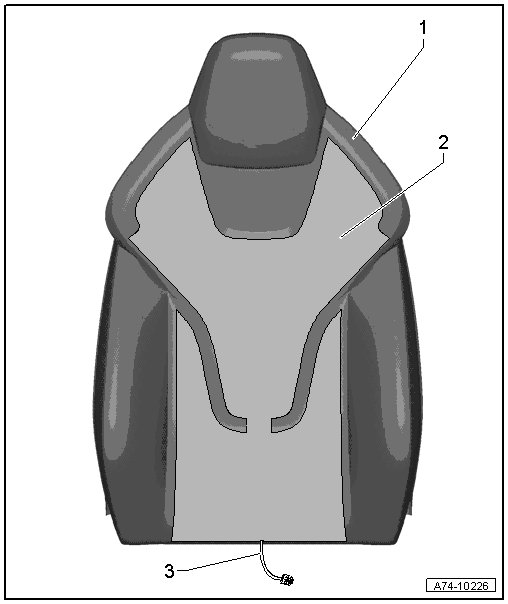

Backrest Heating Element Assembly Overview, Super Sport Seat

Backrest Heating Element Assembly Overview, Super Sport Seat






1 Cushion

• For backrest

2 Backrest Heating Element

• Bonded with upholstery

• Removing and installing, refer to => [ Backrest Heating Element, Super Sport Seat ] Backrest Heating Element, Super Sport Seat

3 Wiring

• Connected to the backrest heating element
