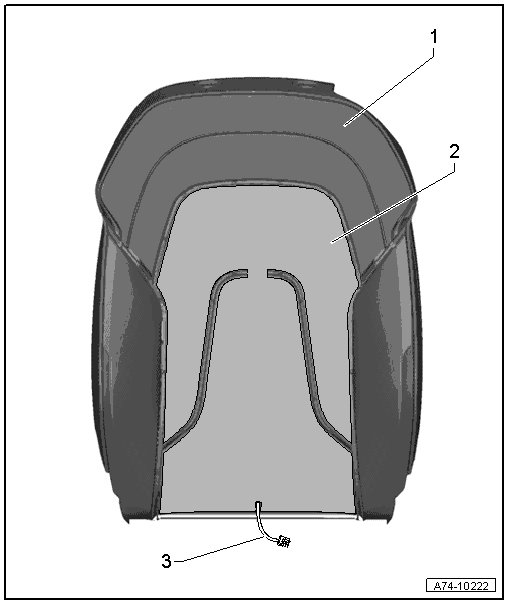

Backrest Heating Element Assembly Overview, Standard Seat

Backrest Heating Element Assembly Overview, Standard Seat






1 Cushion

• For backrest

2 Backrest Heating Element

• Bonded with upholstery

• Removing and installing, refer to => [ Backrest Heating Element, Standard Seat ] Backrest Heating Element, Standard Seat

3 Electric Wire

• Connected to the backrest heating element
