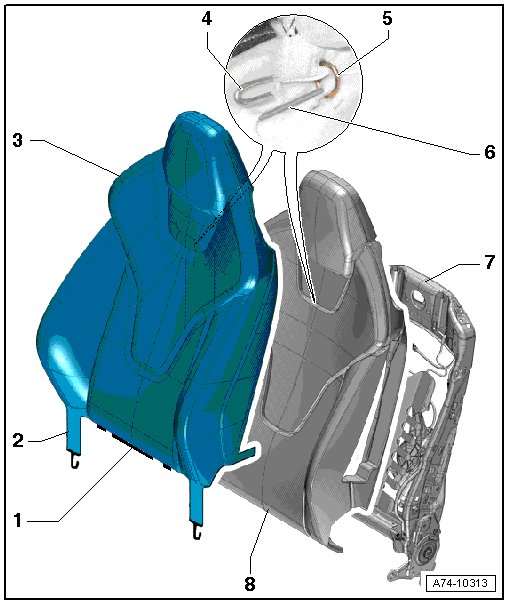

Backrest Cover and Cushion Assembly Overview, Super Sport Seat

Backrest Cover and Cushion Assembly Overview, Super Sport Seat






1 Retaining Strip

• Sewn into cover

• For attaching the cover to the backrest frame

2 Tab

• With hooks

• Sewn into cover

• For attaching the cover to the backrest frame

3 Cover

• Cover with upholstery, removing and installing, refer to => [ Backrest Cover and Cushion, Super Sport Seat ] Backrest Cover and Cushion, Super Sport Seat

• Cover, separating from cushion and connecting, refer to => [ Backrest Cover, Removing from Cushion, Super Sport Seat ] Backrest Cover, Removing From Cushion, Super Sport Seat

4 Contour Wire

• Pushed into the cover

5 Cushion Clamp

• For securing cover to upholstery

• Always replace if removed

• Install in same location as before removal

6 Wire

• In foam in upholstery

• For securing cover to upholstery

7 Backrest Frame

8 Cushion

• Cover with upholstery, removing and installing, refer to => [ Backrest Cover and Cushion, Super Sport Seat ] Backrest Cover and Cushion, Super Sport Seat

• Cover, separating from cushion and connecting, refer to => [ Backrest Cover, Removing from Cushion, Super Sport Seat ] Backrest Cover, Removing From Cushion, Super Sport Seat
