Backrest Cover and Cushion Assembly Overview

Backrest Cover and Cushion Assembly Overview

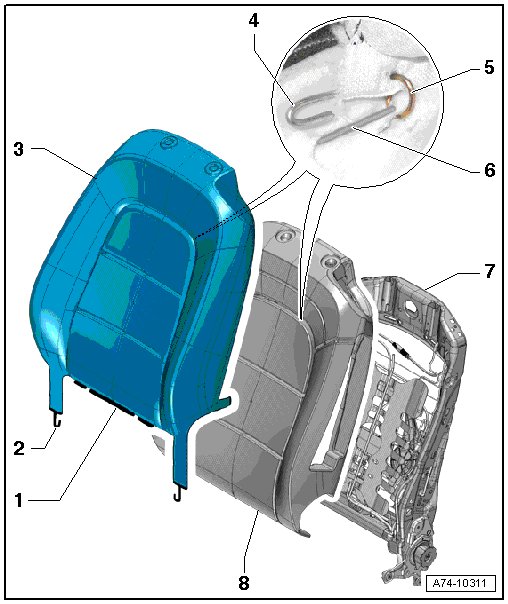

• The assembly overview is based on a manual or power standard or sport front seat and comfort seat.






1 Retaining Channel

• Sewn into cover

• For attaching the cover to the backrest frame

2 Tab

• With hooks

• Sewn into cover

• For attaching the cover to the backrest frame

3 Cover

• Cover with upholstery, removing and installing => [ Backrest Cover with Cushion ] Backrest Cover With Cushion

• Cover, separating from cushion and connecting, refer to => [ Backrest Cover, Removing from Cushion ] Backrest Cover, Removing From Cushion

4 Contour Wire

• Pushed into the cover

5 Cushion clamp

• For securing cover to upholstery

• Always replace if removed

• Install in same location as before removal

6 Wire

• In foam in upholstery

• For securing cover to upholstery

7 Backrest Frame

8 Cushion

• Cover with upholstery, removing and installing, refer to => [ Backrest Cover with Cushion ] Backrest Cover With Cushion

• Cover, separating from cushion and connecting, refer to => [ Backrest Cover, Removing from Cushion ] Backrest Cover, Removing From Cushion
